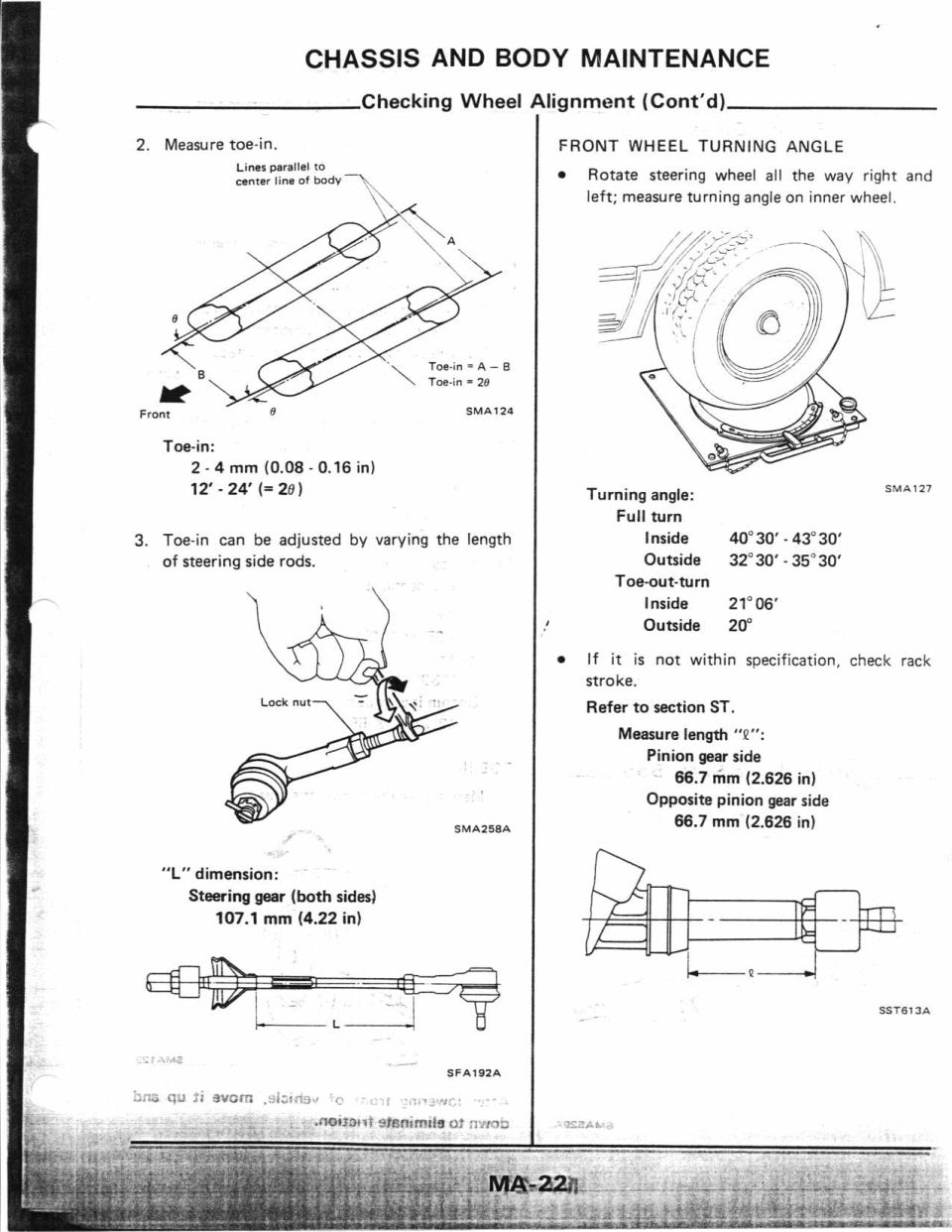

Service manual page on wheel alignment, toe-in and turning angle…

CHASSIS AND BODY MAINTENANCE 2. Measure toe-in. Lines parallel m mnlar line a1 body x Toe-in x 20 Frunt B SMAI2A Toe-in: 2 - 4 mm (0.08 0.16 in) 12' - 24' (= 29) 3. Toe-in can be adjusted by varying the length of steering side rods. sMAzsaA "L" dimension: Steering gear (both sides) 107.1 mm (4.22 in) sFAlszA Checking Wheel Alignment (Cont'd) FRONT WHEEL TURNING ANGLE o Rotate steering wheel all the way right and left; measure turning angle on inner wheel. Turning angle: WM Full turn Inside 40 30' ~ 43 30' Outside 32 30' - 35 30' Toeout-turn Inside 21 06' Outside 20" a If it is not within specification, check rack stroke. Refer to section ST. Measure length "ll": Pinion gear side 66.7 "in: (2.626 in) Opposim pinion gear side 66.7 mm (2.626 in) ss'rsun
