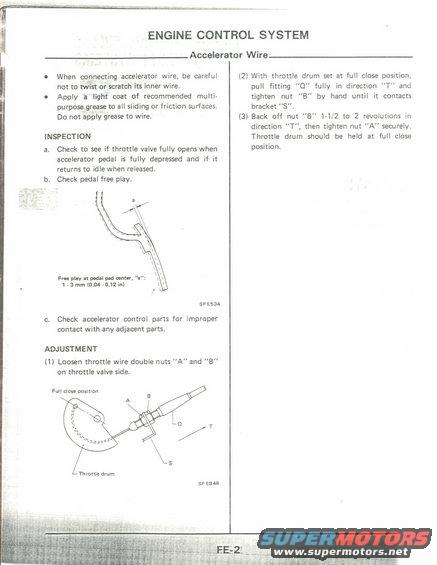

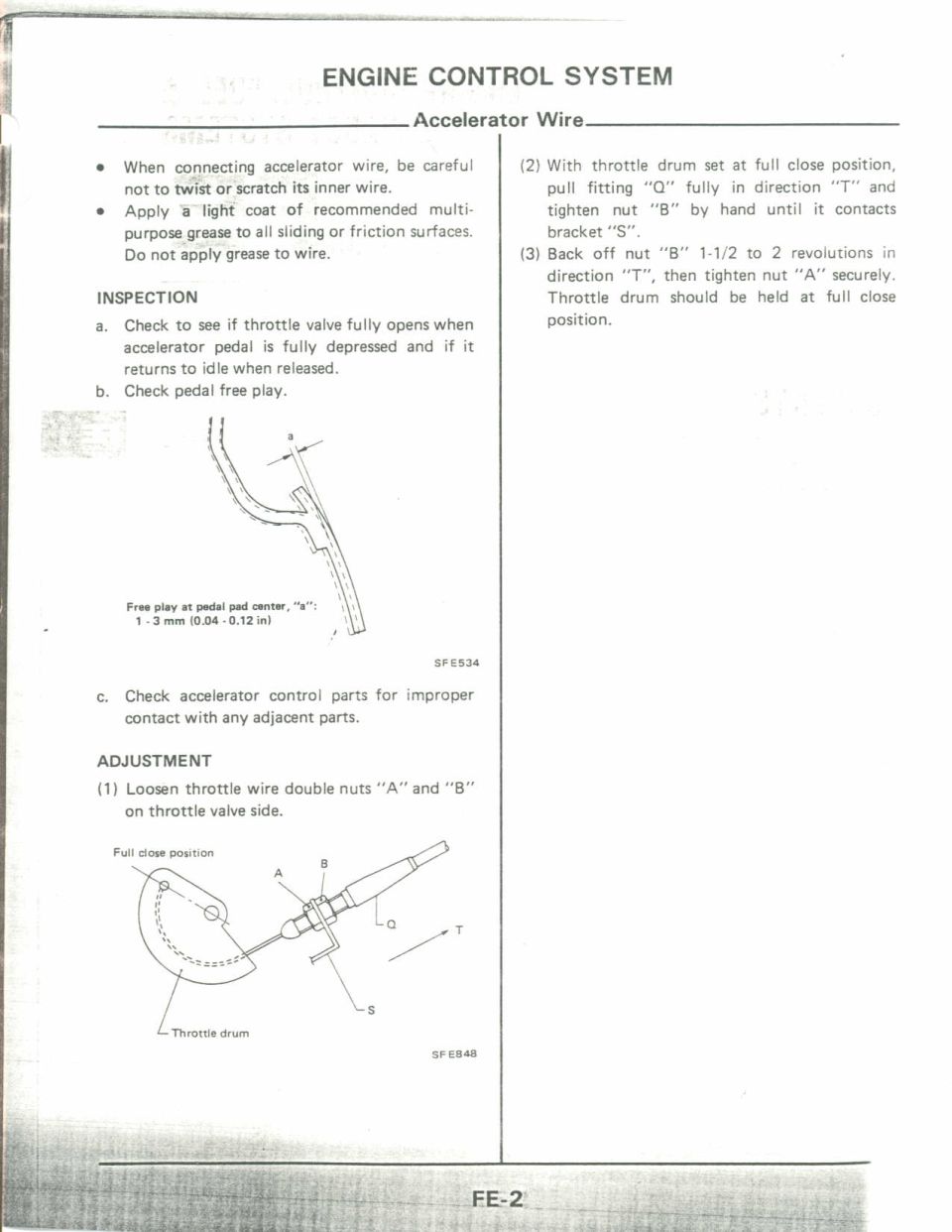

ENGINE CONTROL SYSTEM 0 When connecting accelerator wire, be careful not to twist orscratch its inner wire. I Apply '8 ' light coat of recommended multi- purposegrease to all sliding or friction surfaces. Do not apbly grease to wire. INSPECTION a. Check to see if throttle valve fully opens when accelerator pedal is fully depressed and if it returns to idle when released. bi Check pedal free play. Fm play I: am: pad elm-r, "w: 1 . 3 mm mm 0.12 in) SFESG c. Check accelerator control parts for improper contact with any adjacent parts. ADJUSTMENT I1) Loosen throttle wire double nuts A and "B" on throttle valve side. Full close position Thrctlll drum Accelerator Wire (2) With throttle drum set at full close position, pull fitting "Q" fully in direction "T" and tighten nut "B" by hand until it contacts bracket S". (3) Back off nut B" 14/2 to 2 revolutions in direction "T", then tighten nut A" securely. Throttle drum should be held at full close positiont
