Clutch controls service manual page with pedal adjustment diagra…

Clutch controls service manual page with pedal adjustment diagrams and specs
Clutch controls service manual page with pedal adjustment diagrams and specsOriginal file
Clutch controls service manual page with pedal adjustment diagrams and specs

87 Service ManualView all 403

Nissan service manual page with carburetor, idle compensator and fuel pump specifications tables. Service manual page for Section FE, engine control, fuel and exhaust systems, with contents list Service manual page on accelerator wire inspection and adjustment with two diagrams. Exploded view of fuel tank assembly with gauge unit, hoses, and tubes plus torque values Exploded view of exhaust system with muffler, tubes, hangers, and torque values Nissan service manual CLUTCH section CL contents page Exploded view of clutch controls with lever, cable, pedal and release shaft plus procedure Clutch controls service manual page with pedal adjustment diagrams and specs Exploded view of clutch unit with flywheel, clutch disc, and clutch cover plus torque values Clutch unit service manual page with clutch disc and cover inspection diagrams Clutch cover installation procedure with alignment tool figure Clutch Service Data and Specifications (S.D.S.) with disc, cover and torque values, Nissan Service manual page listing special clutch service tools with drawings, page CL-8 Service manual Section MT Manual Transaxle contents page Nissan service manual page MT-2 with transaxle and gear control diagrams Service manual page MT-3 showing oil seal replacement steps and diagrams. 403photos in this albumView all

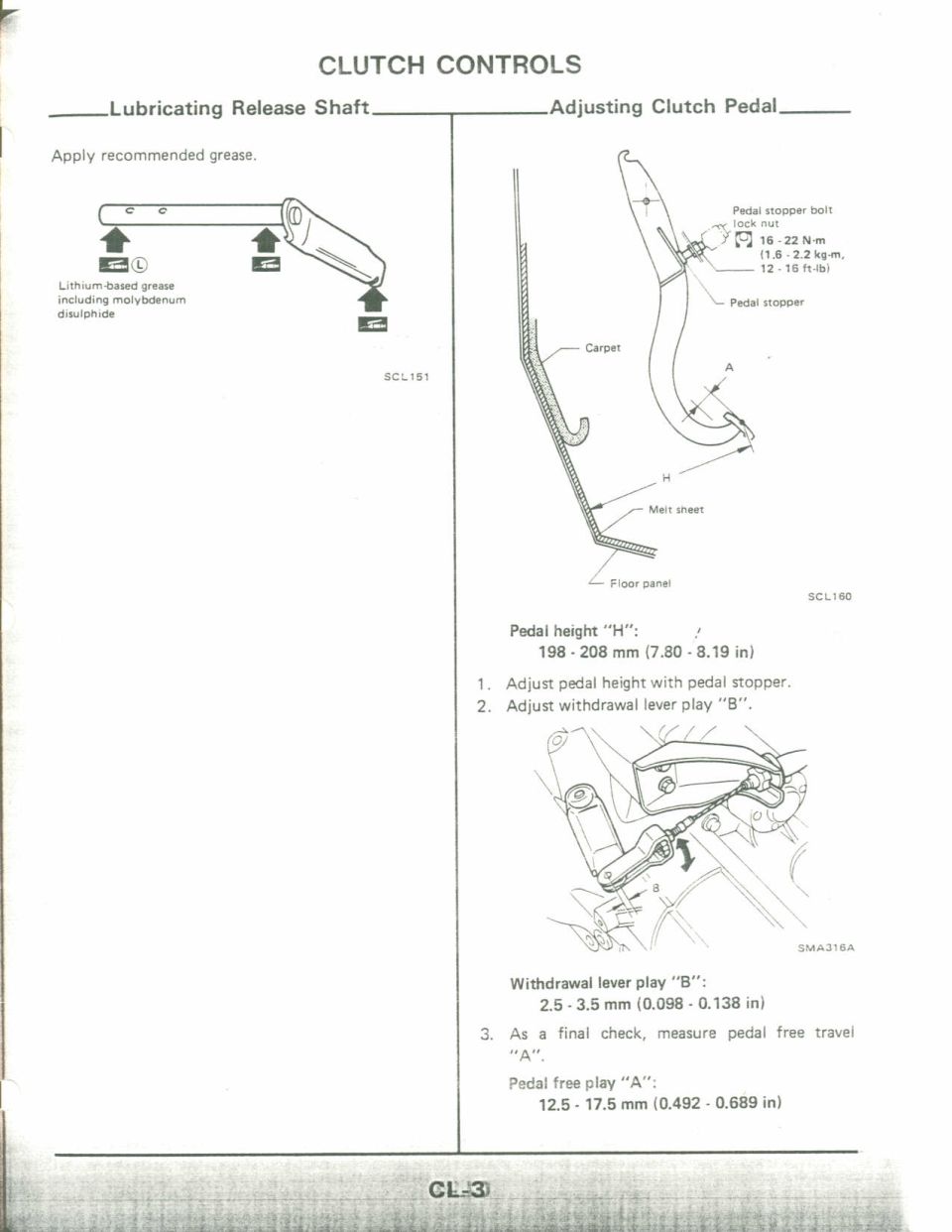

Scanned service manual page titled 'CLUTCH CONTROLS' covering lubricating the release shaft and adjusting the clutch pedal, with diagrams showing pedal height 'H', withdrawal lever play 'B', and free play 'A' specifications.

AI caption · Photo 142 of 412

CLUTCH CONTROLS Lubricating Release Shaft Apply recommended grease. Lithiumcasaa grins. including mnrybamum ampmae SCLISI Adjusting Clutch Pedal Pedal smuvm mu lock nu: M 16-22 Nrm us 72.2 kg-m, 12 -15h-lbl X Pedal slopnzr Floor anel scLi so Pedal height H: j 198 - 208 mm (7.80 - 8.19 in) 1. Adjust pedal height with pedal stopper. 2. Adjust withdrawal lever play "BE SMAvaA Withdrawal lever play "B": 2.5 - 3.5 mm (0.098 - 0.138 in) 3. As a final check, measure pedal free travel ..A.._ Pedal free play "A: 12.5 - 17.5 mm (0.492 0.689 in)
