Nissan Micra Exhaust System Exploded Diagram & Torque Specs - FE-4

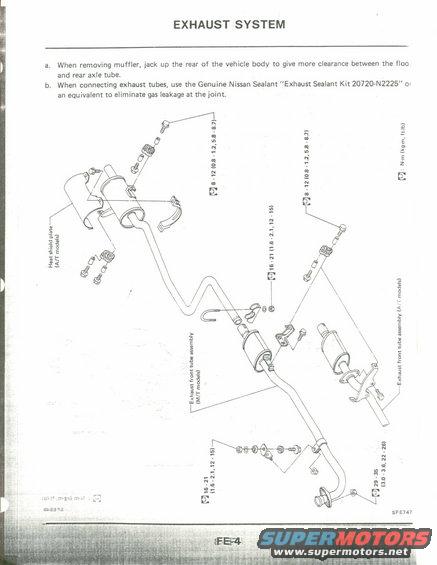

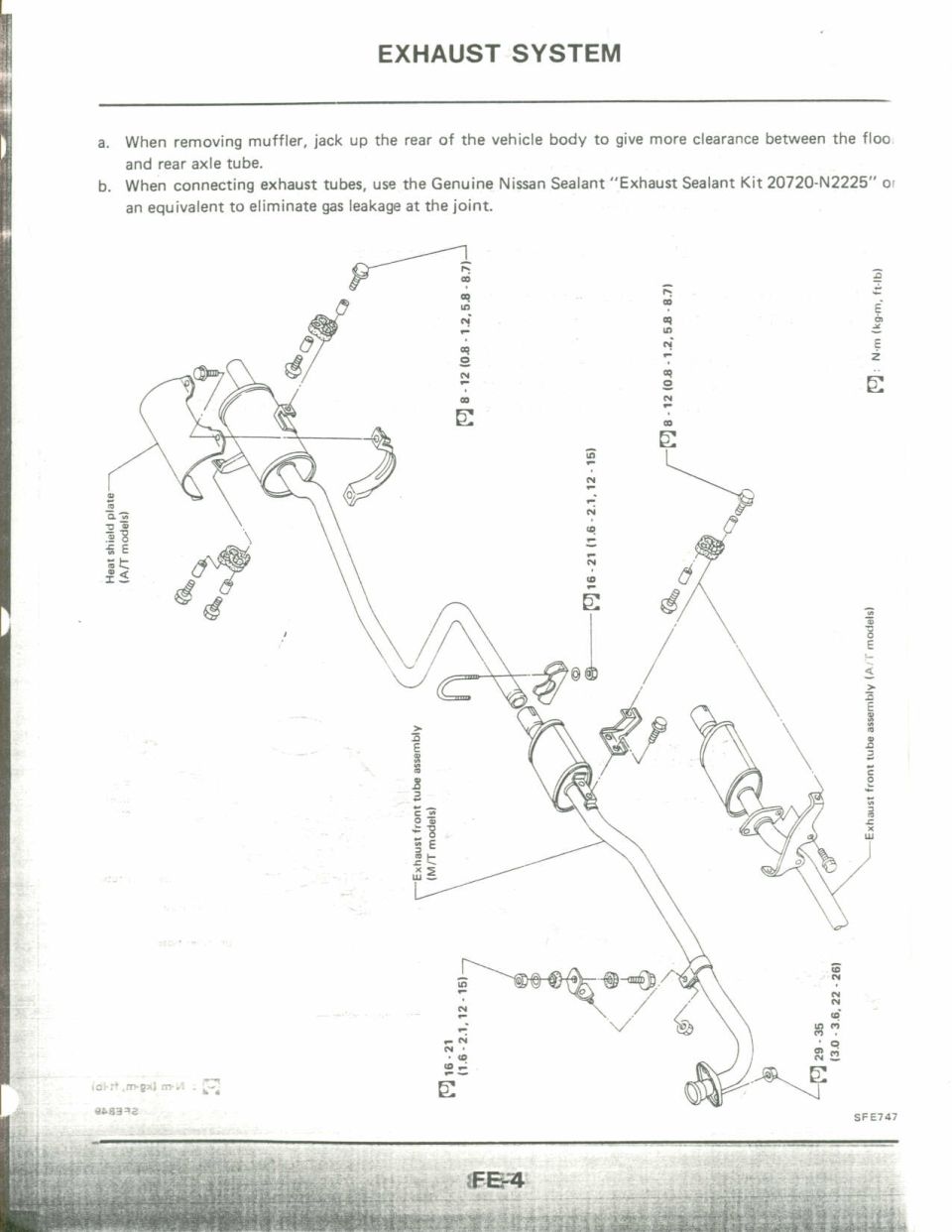

This is page FE-4 of a Nissan factory service manual covering the exhaust system, uploaded to a 1990 Nissan Micra gallery. The page provides two service notes: (a) when removing the muffler, jack up the rear of the vehicle body to gain clearance between the floor and rear axle tube; and (b) when connecting exhaust tubes, use Genuine Nissan "Exhaust Sealant Kit 20720-N2225" or equivalent to prevent gas leakage at joints. The bulk of the page is an exploded parts diagram (figure SFE747) of the complete exhaust system, showing the muffler, heat shield plate (A/T models), exhaust front tube assemblies (with separate versions for M/T and A/T models), catalytic converter/pre-muffler, hangers, clamps, U-bolts, gaskets, and fasteners. Torque specifications are given in N·m (kg-m, ft-lb): 8-12 N·m (0.8-1.2 kg-m, 5.8-8.7 ft-lb) for muffler and front tube mounting fasteners, 16-21 N·m (1.6-2.1 kg-m, 12-15 ft-lb) for clamp/hanger nuts, and 29-35 N·m (3.0-3.6 kg-m, 22-26 ft-lb) for the front tube-to-manifold connection. The document distinguishes automatic and manual transmission model configurations of the front exhaust tube.
