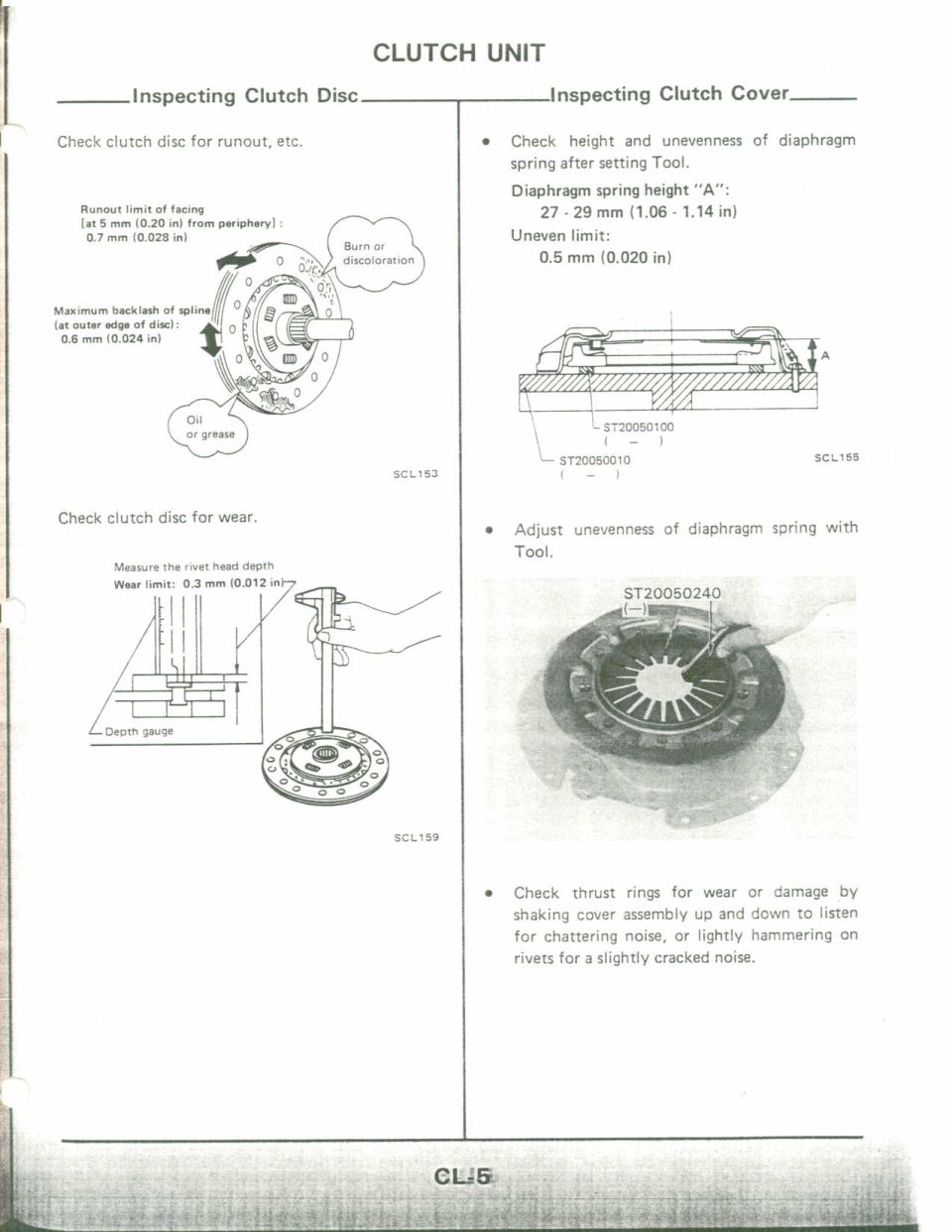

Clutch unit service manual page with clutch disc and cover inspe…

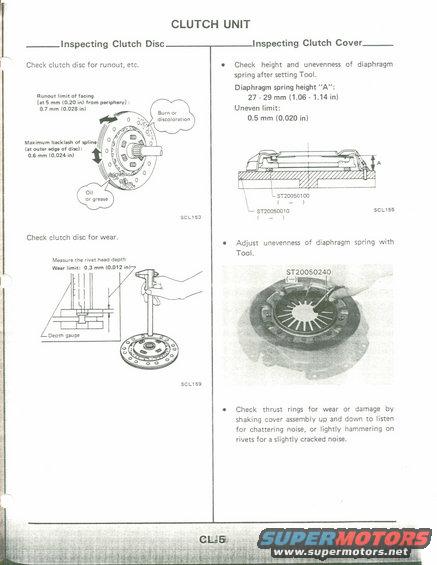

Scanned service manual page titled 'CLUTCH UNIT' (page CL-5) covering inspection of the clutch disc and clutch cover, with diagrams showing runout limits, wear measurement with a depth gauge, and diaphragm spring height checks. Includes specifications like runout limit 0.7 mm and diaphragm spring height 27-29 mm.
CLUTCH UNIT Inspecting Clutch Disc Check clutch disc for runout, etc. Runaut limit at facmg in 5 mm (0.20 in) from periphery] : 0.7 mm [0.023 in) Maximum backlash nf mum/0 o in sum :19. of dine): 0,6 mm (0.02; in) Bum or dlSEDiDIMIon Oil ur grease schs: Check clutch disc for wear. Measure the nut head depm Wu! limit: 0.: mm (0.012 m . new gauge scuss Inspecting Clutch Cover. Check height and unevenness of diaphragm spring after setting Tool. Diaphragm spring height "A": 27 - 29 mm (106 - 1.14 in) Uneven limit: 0.5 mm (0020 in) , 51700501 00 l l LSTZDDEUDIO l 7 l SCLSE Adjust unevenness of diaphragm spring with Tool. ST)200 50240 Check thrust rings for wear or damage by shaking cover assembly up and down to listen for chattering noise, or lightly hammering on rivets for a slightly cracked noise.
