Removed rear axle housing on red jack stands in a driveway durin…

‹ ›

Locker and axle overhaulView all 11

Lifted red truck on jack stands with rear axle housing removed during driveway teardown

Tools and parts laid out on garage floor, including brake shoes, a grinder, and a catalytic converter on jack

1984 Ford Bronco rear axle on jack stands, with tools and parts on the ground

Rear axle housing painted gloss black standing upright in a box to dry in a garage

Curved metal tool with pink handle, red toolbox, and storage cabinets

Axle shaft and hub wrapped in plastic and tape on a garage floor beside a brake shoe

Cardboard box for Detroit Locker differential, model 187SL-17B, with "truetrac", "nospin", and "detroit locker

Differential gears in a cardboard box and plastic wrap. Text reads "SUPERMOTORS www.supermotors.net"

Differential carrier with ring and pinion gears coated in yellow gear-marking compound

Rear drum brake assembly with drum removed showing new shoes and return springs

11photos in this albumView all

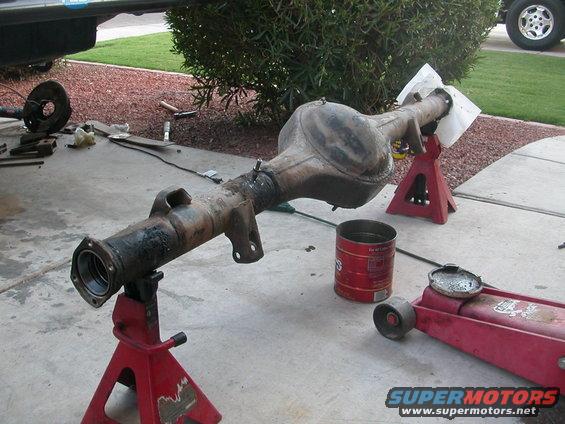

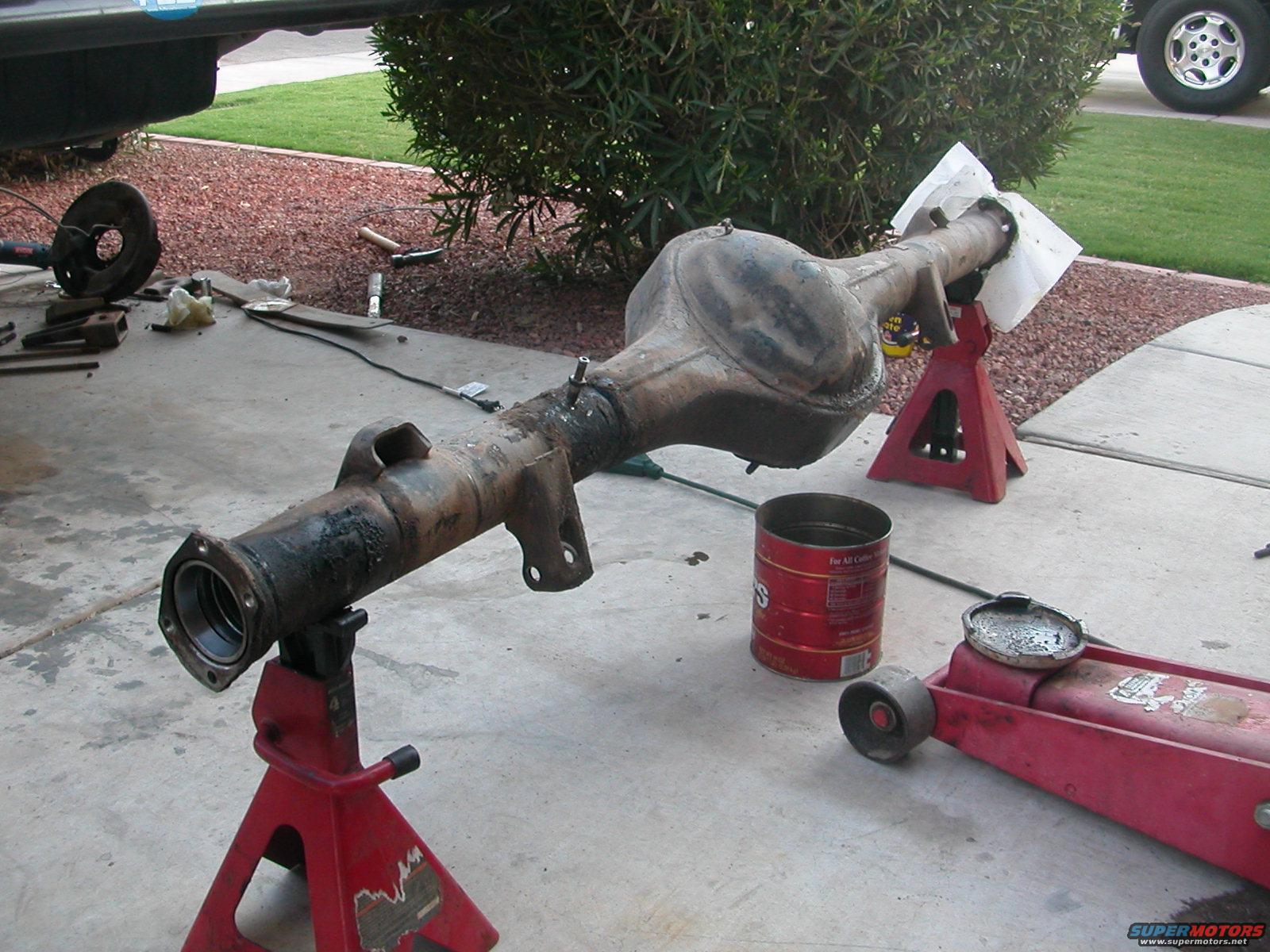

A bare rear axle housing pulled from the truck and supported on red jack stands on a driveway, with the differential pumpkin center and both bearing-end tubes exposed and the ends taped off. A red floor jack, a coffee can of parts and a brake backing plate sit nearby on the concrete.

AI caption July 2005 · Photo 161 of 460
