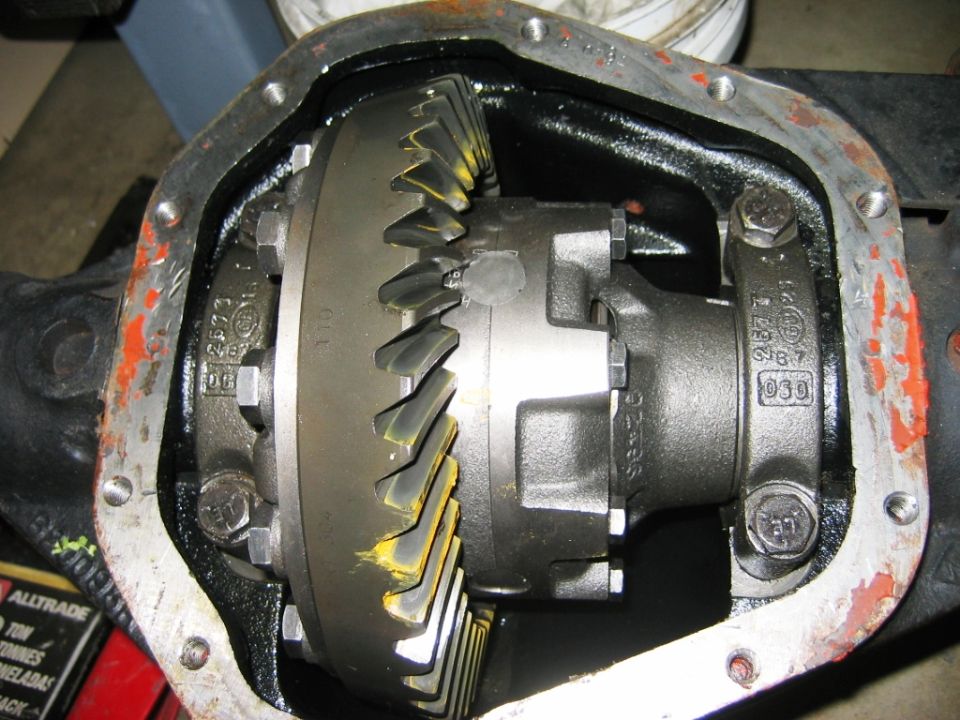

Close-up of an open differential housing showing the ring gear and carrier assembly, with yellow marking compound on the gear teeth for a gear-mesh pattern check. Cast numbers and bearing caps with retaining bolts are visible inside the cast-iron axle housing.
