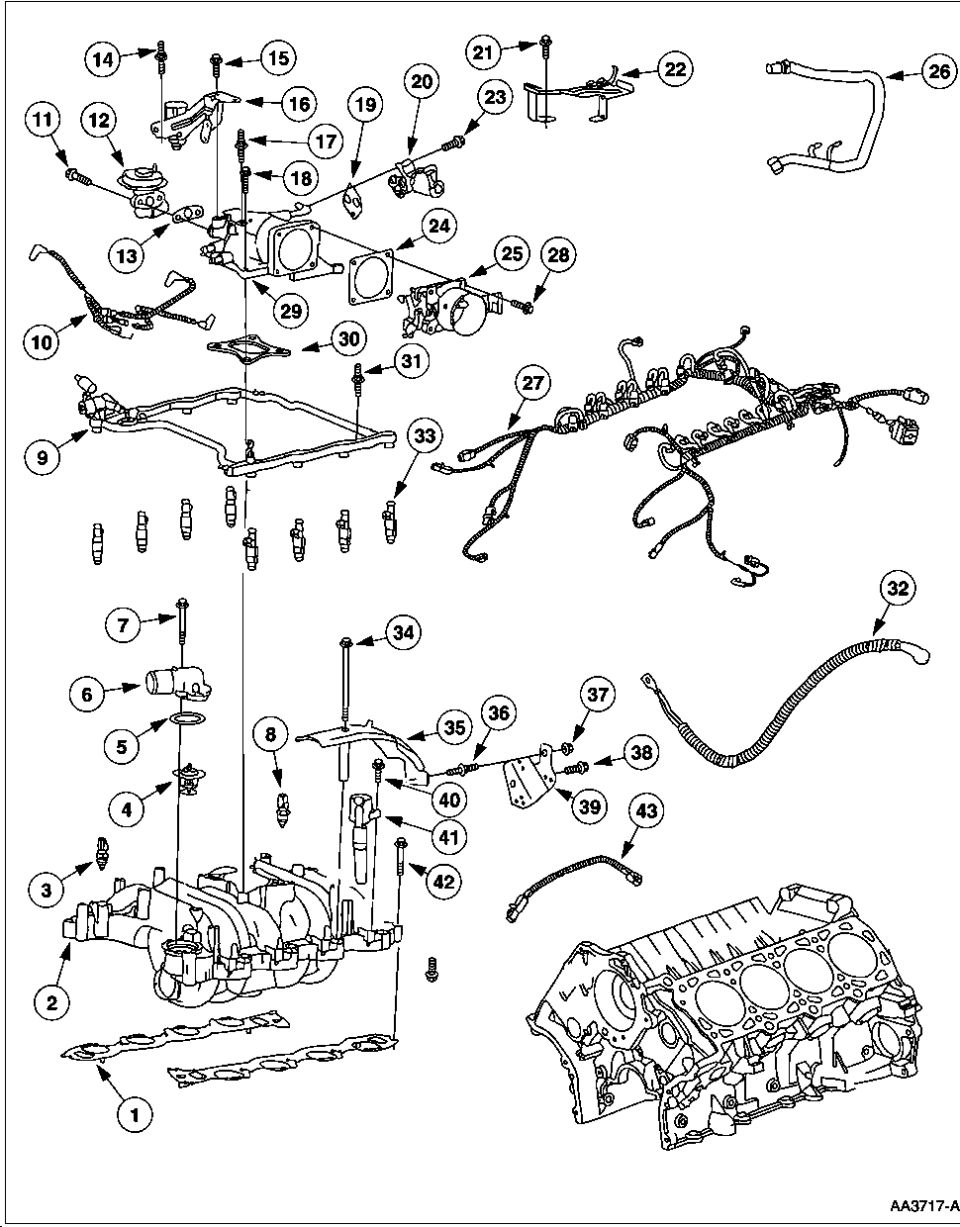

1. Intake Manifold Gasket (2 Req'd) 2. Intake Manifold 3. Wat…

1. Intake Manifold Gasket (2 Req'd)
2. Intake Manifold
3. Water Temperature Indicator Sending Unit
4. Water Thermostat
5. O-Ring
6. Water Outlet Adapter
7. Bolt (2 Req'd)
8. Engine Coolant Temperature Sensor
9. Fuel Injection Supply Manifold
10. Vacuum Harness
11. Bolt (2 Req'd)
12. EGR Valve
13. EGR Valve Gasket
14. Stud
15. Bolt (2 Req'd)
16. EVR Sensor
17. Stud
18. Bolt (5 Req'd)
19. Idle Air Control Valve Gasket
20. Idle Air Control Valve
21. Bolt (2 Req'd)
22. Intake Manifold Shield
23. Bolt (2 Req'd)
24. Throttle Body Gasket
25. Throttle Body
26. EGR to Exhaust Manifold Tube
27. Fuel Charging Wiring
28. Bolt (4 Req'd)
29. Throttle Body Adapter
30. Throttle Body Adapter Gasket
31. Stud (4 Req'd)
32. Generator Voltage Regulator Wiring
33. Fuel Injector (8 Req'd)
34. Bolt
35. Crash Bracket
36. Stud
37. Nut
38. Bolt
39. Wiring Bracket
40. Bolt (8 Req'd)
41. Ignition Coil (8 Req'd)
42. Bolt (9 Req'd)
43. Engine Coolant Temperature Sensor Wire
