1. Torque converter 2. Intermediate clutch 3. Reverse clutch…

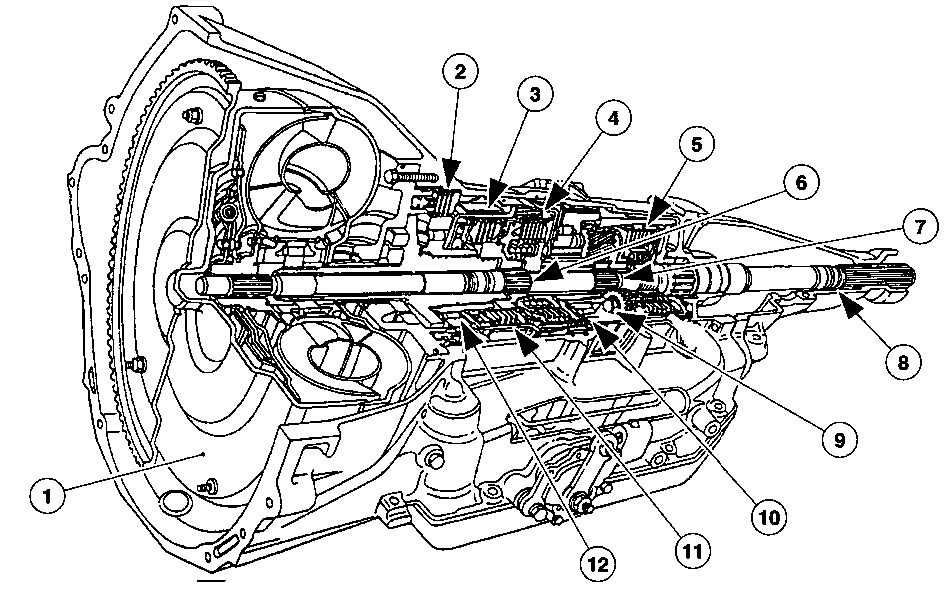

1. Torque converter 2. Intermediate clutch 3. Reverse clutch 4. Forward clutch 5. Direct clutch 6. Forward clutch cylinder and shaft 7. Shaft – intermediate stub 8. Output shaft 9. Planetary one-way clutch 10. Reverse clutch band 11. Overdrive band 12. Intermediate one-way clutch
1. Torque converter 2. Intermediate clutch 3. Reverse clutch 4. Forward clutch 5. Direct clutch 6. Forward clutch cylinder and shaft 7. Shaft – intermediate stub 8. Output shaft 9. Planetary one-way clutch 10. Reverse clutch band 11. Overdrive band 12. Intermediate one-way clutchOriginal file
1. Torque converter 2. Intermediate clutch 3. Reverse clutch 4. Forward clutch 5. Direct clutch 6. Forward clutch cylinder and shaft 7. Shaft – intermediate stub 8. Output shaft 9. Planetary one-way clutch 10. Reverse clutch band 11. Overdrive band 12. Intermediate one-way clutch

TechView all 19

Ford Central Junction Box fuse identification chart with amp ratings and circuits 2000 Ford Crown Victoria photo 2000 Ford Crown Victoria photo 2000 Ford Crown Victoria photo 2000 Ford Crown Victoria photo Line diagram of automotive exhaust system with numbered catalytic converters and mufflers 2000 Ford Crown Victoria photo 2000 Ford Crown Victoria photo 2000 Ford Crown Victoria photo Differential housing cover removal and installation procedure with warnings and lubricant specs 2000 Ford Crown Victoria photo Exploded diagram of rear axle differential and integral carrier assembly with numbered parts Workshop manual page for transmission control switch removal and installation with figure Service manual page: exterior rear view mirror control switch removal and installation steps Ignition general and torque specs, base timing 10 BTDC, firing order 1-3-7-2-6-5-4-8, plug gap, AWSF-32P 2000 Crown Victoria/Grand Marquis front suspension description and operation with fastener caution 19photos in this albumView all

1. Torque converter
2. Intermediate clutch
3. Reverse clutch
4. Forward clutch
5. Direct clutch
6. Forward clutch cylinder and shaft
7. Shaft – intermediate stub
8. Output shaft
9. Planetary one-way clutch
10. Reverse clutch band
11. Overdrive band
12. Intermediate one-way clutch

Owner caption · Photo 454 of 672
