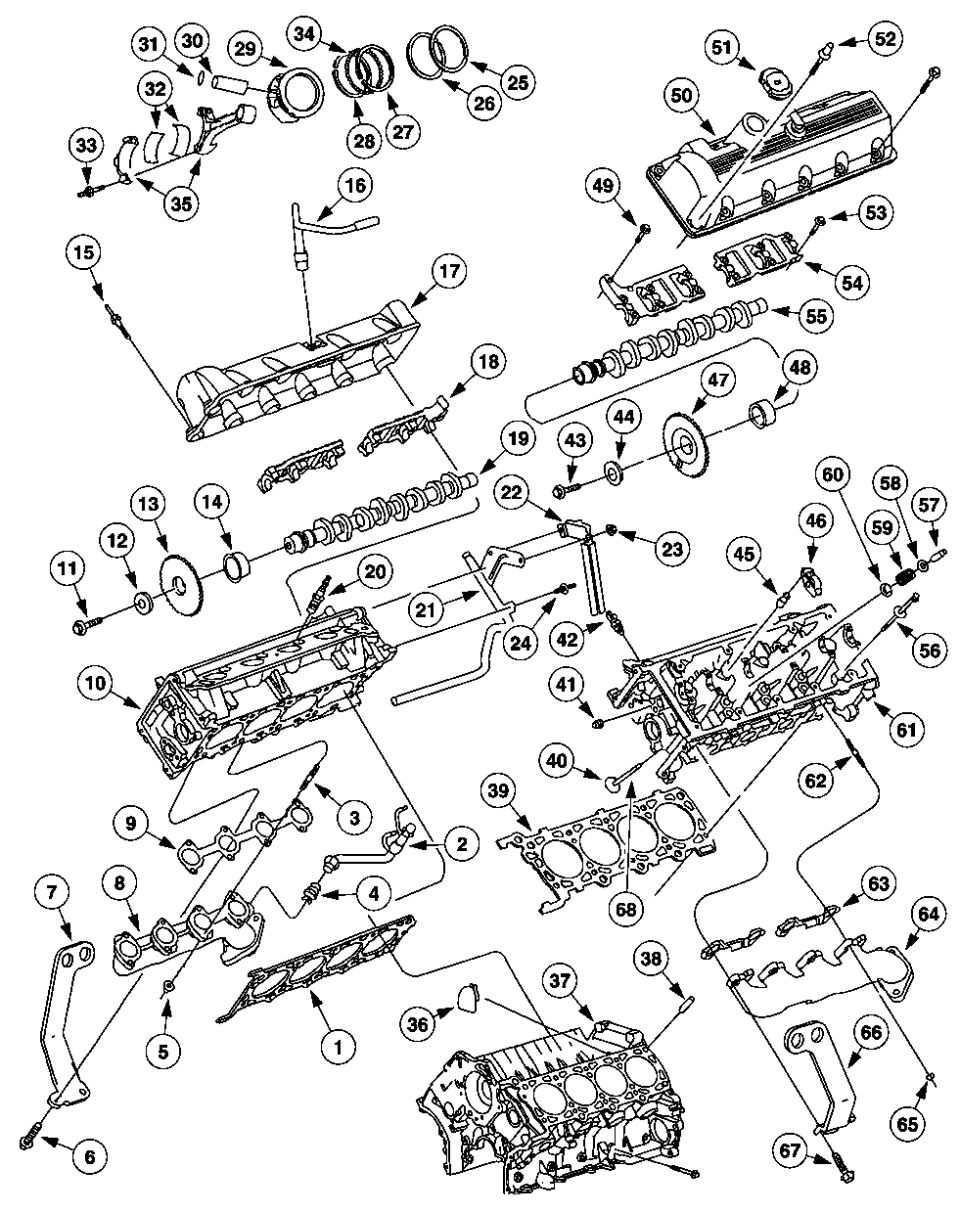

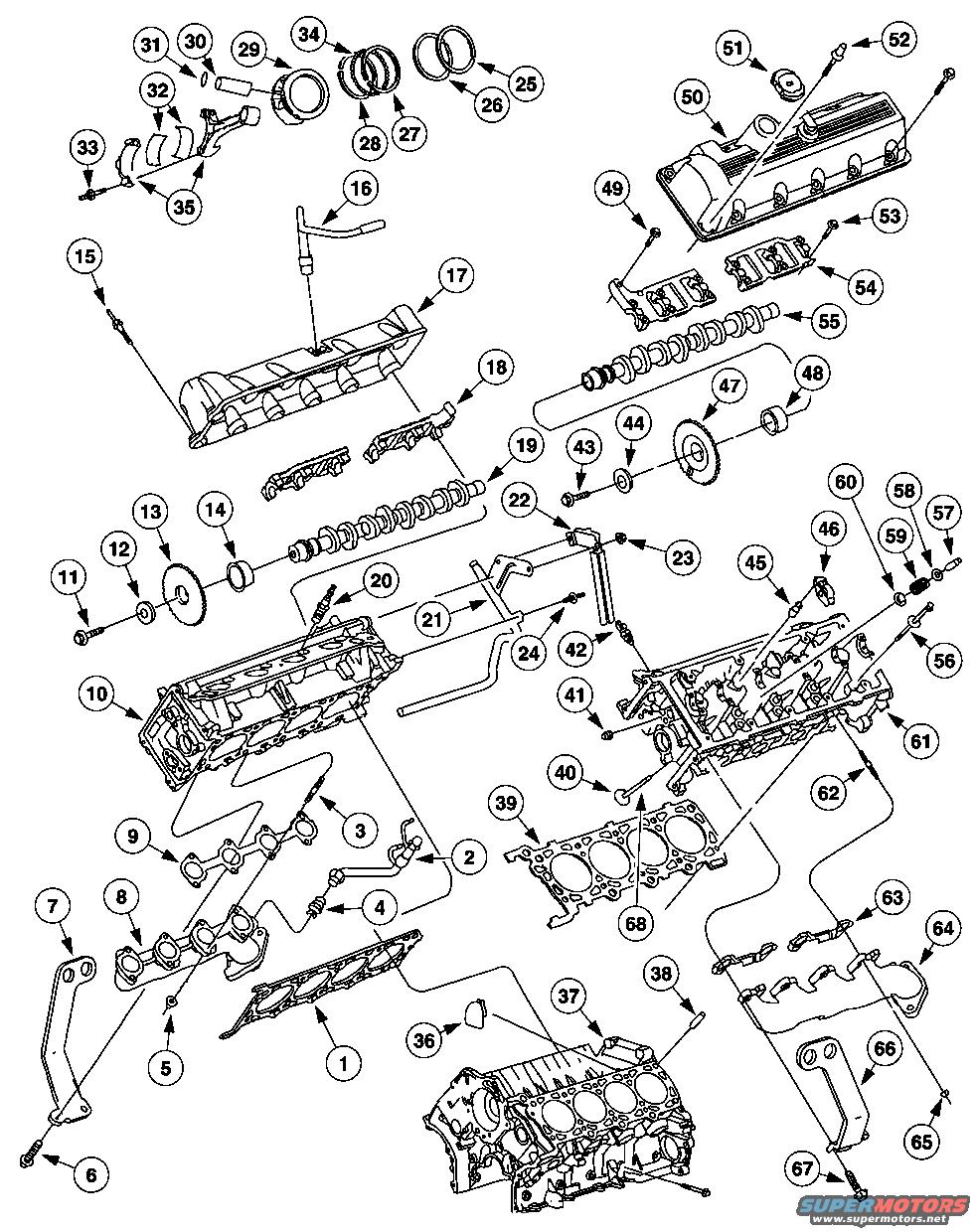

1. Head Gasket
2. EGR Valve to Exhaust Manifold Tube
3. Stud (8 Req'd)
4. EGR Valve Tube to Manifold Connector
5. Nut (8 Req'd)
6. Bolt (2 Req'd)
7. Engine Lift Bracket
8. Exhaust Manifold
9. Exhaust Manifold Gasket
10. Cylinder Head
11. Bolt
12. Washer
13. Camshaft Sprocket
14. Camshaft Sprocket Spacer
15. Stud (2 Req'd)
16. Crankcase Vent Connector and Hose
17. Valve Cover
18. Camshaft Bearing Cap
19. Camshaft
20. Spark Plug (8 Req'd)
21. Heater Water Bypass Tube
22. EGR Transducer
23. Nut (2 Req'd)
24. Stud (2 Req'd)
25. Top Compression Ring (8 Req'd)
26. Lower Compression Ring (8 Req'd)
27. Top Oil Control Ring (8 Req'd)
28. Lower Oil Control Ring (8 Req'd)
29. Piston
30. Full Float Piston Pin
31. Snap Ring (16 Req'd)
32. Connecting Rod Bearing (16 Req'd)
33. Connecting Rod Bolt (16 Req'd)
34. Oil Ring Spacer (8 Req'd)
35. Connecting Rod Assembly (8 Req'd)
36. Torque Converter Inspection Hole Cover
37. Cylinder Block
38. Dowl (4 Req'd)
39. Head Gasket
40. Intake Valve (8 Req'd)
41. Pipe Plug (8 Req'd)
42. Cylinder Head Temperature Sensor
43. Bolt
44. Washer
45. Hydraulic Lash Adjuster (16 Req'd)
46. Roller Follower (16 Req'd)
47. Camshaft Sprocket
48. Camshaft Sprocket Spacer
49. Bolt (4 Req'd)
50. Valve Cover
51. Oil Filler Cap
52. Bolt (20 Req'd)
53. Bolt (24 Req'd)
54. Camshaft Bearing Cap
55. Camshaft
56. Cylinder Head Bolt (20 Req'd)
57. Valve Spring Retainer Key (16 Req'd)
58. Valve Spring Retainer (16 Req'd)
59. Valve Spring (16 Req'd)
60. Valve Stem Seal (16 Req'd)
61. Cylinder Head
62. Stud (8 Req'd)
63. Exhaust Manifold Gasket
64. Exhaust Manifold
65. Nut (8 Req'd)
66. Engine Lift Bracket
67. Bolt (2 Req'd)
68. Exhaust Valve (8 Req'd)
