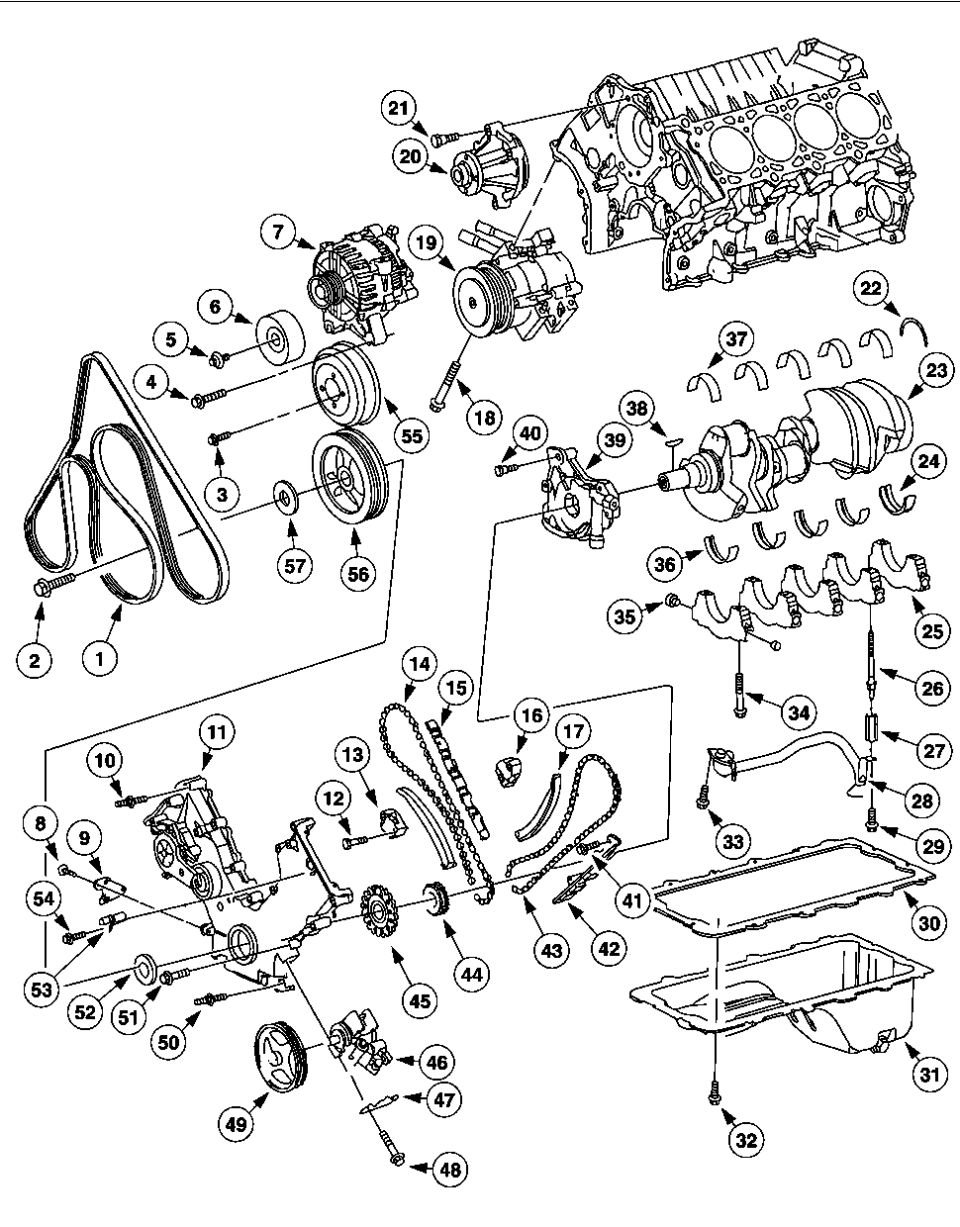

1. Drive Belt 2. Bolt 3. Bolt (4 Req'd) 4. Bolt (2 Req'd) 5.…

1. Drive Belt
2. Bolt
3. Bolt (4 Req'd)
4. Bolt (2 Req'd)
5. Bolt
6. Idler Pulley
7. Generator
8. Bolt
9. Crank Position Sensor
10. Stud (5 Req'd)
11. Engine Front Cover
12. Bolt (4 Req'd)
13. Timing Chain Tensioner
14. Timing Chain
15. Timing Chain Guide
16. Timing Chain Tensioner
17. Timing Chain Tensioner Arm
18. Bolt (3 Req'd)
19. A/C Compressor
20. Water Pump
21. Bolt (4 Req'd)
22. Crankshaft Thrust Washer
23. Crankshaft
24. Crankshaft Thrust Main Bearing
25. Crankshaft Main Bearing Cap
26. Crankshaft Main Bearing Cap Stud
27. Spacer
28. Oil Pump Screen Cover and Tube
29. Bolt
30. Oil Pan Gasket
31. Oil Pan
32. Bolt (16 Req'd)
33. Bolt (2 Req'd)
34. Crankshaft Main Bearing Cap Bolt (9 Req'd)
35. Crankshaft Main Bearing Cap Adjusting Screw (10 Req'd)
36. Crankshaft Main Bearing
37. Crankshaft Main Bearing
38. Crankshaft Keyway
39. Oil Pump
40. Bolt (4 Req'd)
41. Bolt (4 Req'd)
42. Timing Chain Guide
43. Timing Chain
44. Crankshaft Sprocket (2 Req'd)
45. Crankshaft Sensor Ring
46. Power Steering Pump
47. Power Steering Hose Bracket
48. Bolt (4 Req'd)
49. Power Steering Pump Pulley
50. Stud (4 Req'd)
51. Bolt (4 Req'd)
52. Crankshaft Front Seal
53. Camshaft Position Sensor
54. Bolt
55. Water Pump Pulley
56. Crankshaft Damper
57. Washer
