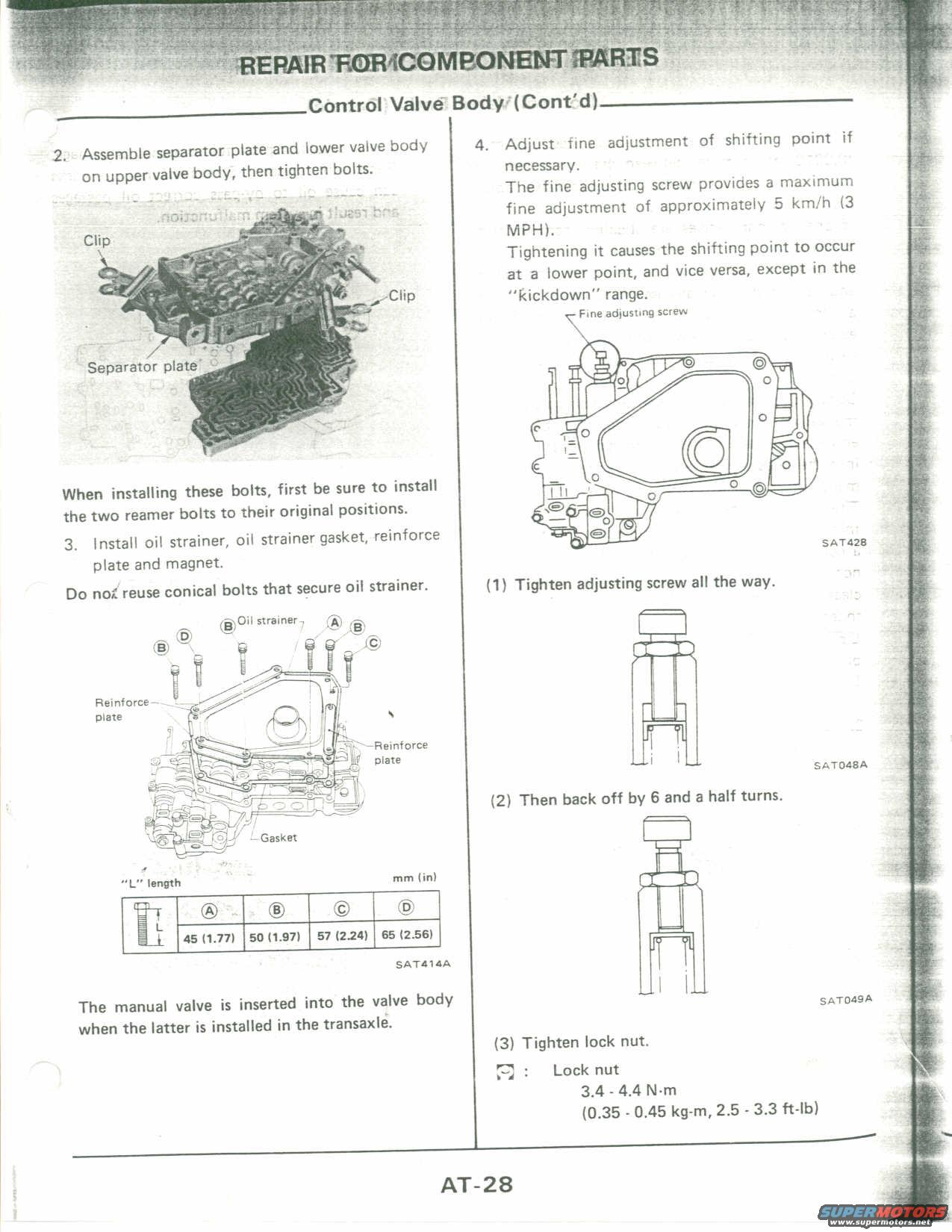

'/ 2. Assemble separator plate and lower valve body on upper valve body, then tighten bolts. When installing these bolts, first be sure to install the two reamer bolts to their original positions. 3 Install oil strainer, oil strainer gasket, reinforce plate and magnet. Do noi reuse conical bolts that secure oil strainer, (Eon slrilnlrs Reinlmcer mate rFlemlorce Olate mm (in) El 03 @ 45 (1.77! 50 37) 57 (224) 65 (255) SAT AA The manual valve is inserted into the valve body when the latter is installed in the transaxle. Control Valve Bodyi(Cont,'d)__ 4. Adjust fine adjustment of shifting point if necessary, The fine adiusting screw provtaes a maximum fine adjustment of approximately 5 km/h (3 MPH). Tightening it causes the shifting point to occur at a lower point, and vice versa, except in the "Rickdown" range. Fine adjusting screw snraze (1) Tighten adjusting screw all the way. Fi'l i l SATDMA (2) Then back off by 6 and a halt turns. SArmeA (3) Tighten lock nut. E : Lock nut 3.4 - 4.4 N-m (0.35 045 kg-m, 2.5 - 3.3 -lb) AT-28
