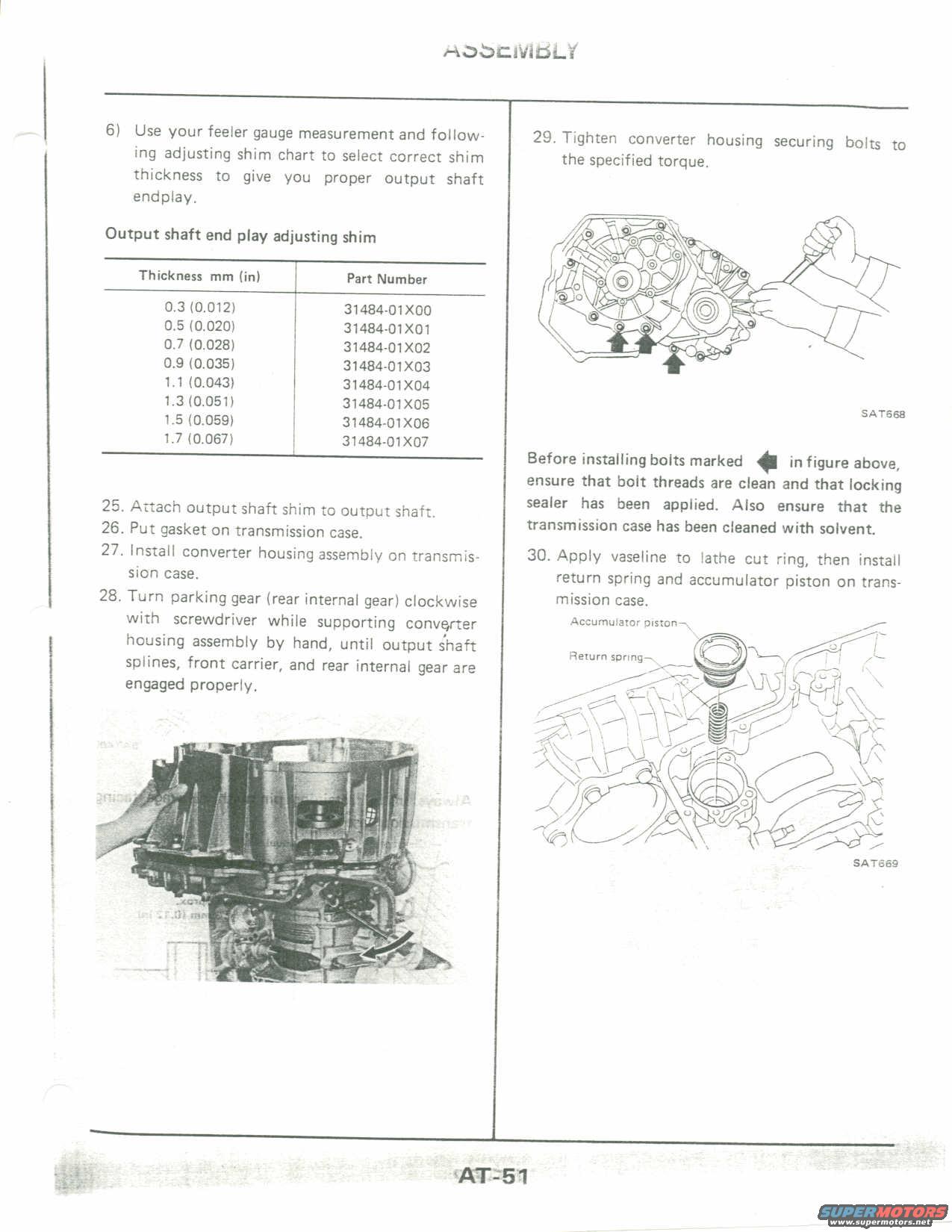

HDDCIWDL? 6i Use your feeler gauge measurement and follow- ing adjusting shim chart to select correct shim thickness to give you proper output shaft endplay. Output shaft end play adjusting shim Thickness mm (in) Pan Number 0.310.012) 31484~01X00 0.5 (0.020) 31484-01X01 0.7 (0.028) 31484-O1X02 0.9 ((1035) 314B4-01X03 1.1 (0.043) 31484~01XU4 1.3 (0.051) 31484-01X05 l.5 (0.059) 31484-0lX06 1.7 (0.057) 31484-01XO7 25. Attach output shaft shim to output shaft. 26. Put gasket on transmission case. 27. install converter housing assembly on transmis- sion case. 28. Turn parking gear lrear internal gear) clockwise with screwdriver while supporting converter housing assembly by hand, until output shaft splines, front carrier, and rear internal gear are engaged properly. 29, Tighten converter housing securing bolts to the specified torque. SATssa Before installing bolts marked in figure above, ensure that bolt threads are clean and that locking sealer has been applied. Also ensure that the transmission case has been cleaned with solvent. 30. Apply vaseline to lathe cut ring, then install return spring and accumulator piston on trans mission case. Accumulamr Omani: AT35I
