Technical diagrams detail the assembly and installation of a front axle wheel hub and knuckle.

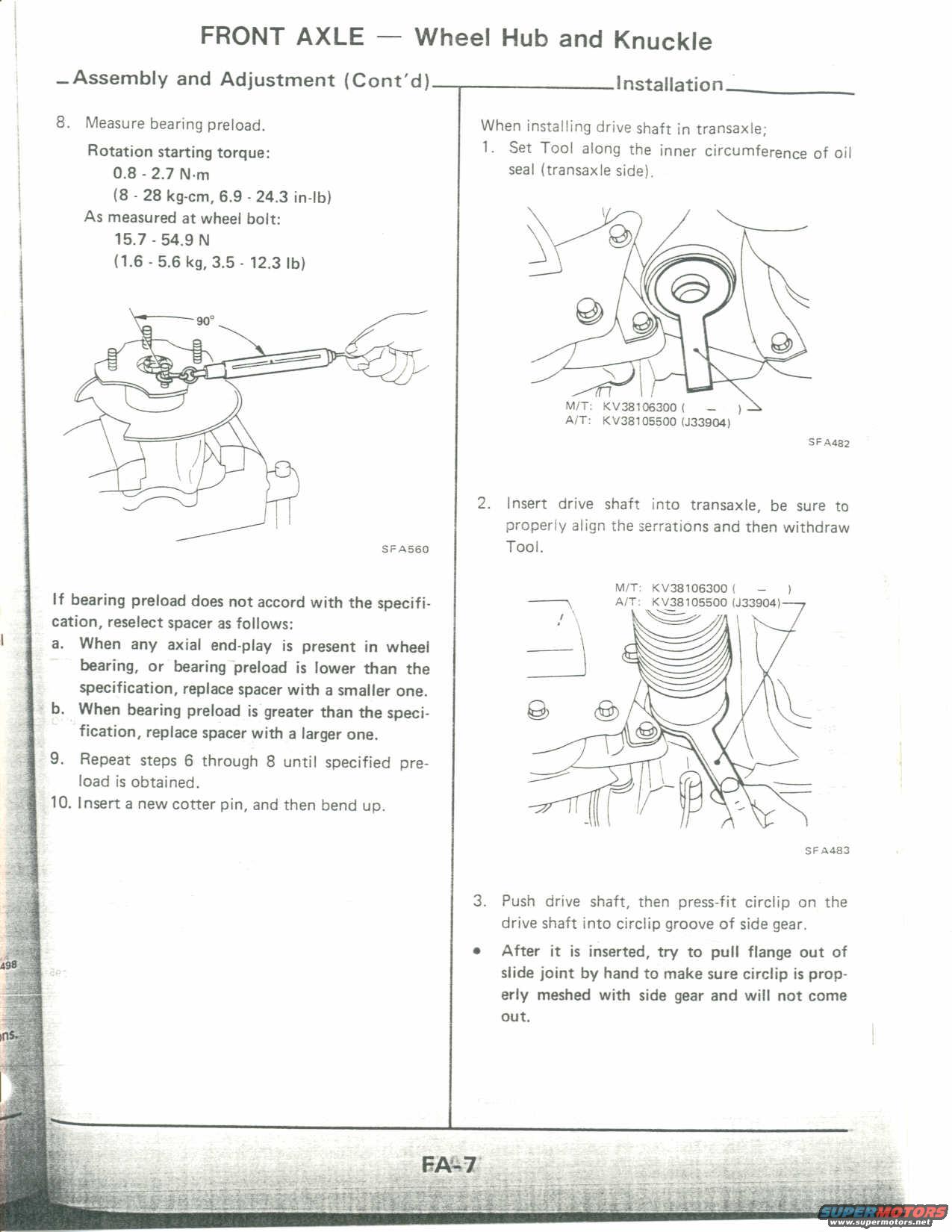

_Assembly and Adjustment (Cont'd)_ 8. Measure bearing preload, Rotation starting torque: l 0.8 . 27 Nm 1 (a - 28 kg~om, 6.9 24.3 in-lb) As measured at wheel bolt: I 15.7 . 54.9 N (1.6 - 5.6 kg, 3.5. 12.3 lb) SFASEO If bearing preload does not accord with the specifie cation, reselect spacer as follows: a. When any axial end-play is present in wheel hearing, or hearing preload is lower than the specification, replace spacer with a smaller one. a be When bearing preload is greater than the speci- fication, replace spacer with a larger one. 9. Repeat steps 8 through 8 until specified pre~ load is obtained, . 10. Insert a new cotter pin, and then bend up. FRONT AXLE Wheel Hub and Knuckle Installation When installing drive shaft in transaxle, 1. Set Tool along the inner circumference of oil seal ([ransaxle side). M/T Kvssioeaonl 1 NT: KVEBlOSSO (JJJBD) 55 A482 2. Insert drive shaft into transaxle, be sure to properly align the serrations and then withdraw Toolt MIT KV38|063001 7 l A/T Kvaemssoo lJJBQMl : . SFA483 3. Push drive shaft, then press-fit circlip on the drive shaft into circlip groove of side gear. I After it is inserted, try to pull flange out of slide joint by hand to make sure circlip is pmp~ erly meshed with side gear and will not come out.
