Reference · 1992-1996 BroncoAll 103 data & spec plates

Ford truck certification label with 25 numbered callouts explaining GVWR, tire, VIN and code fields Ford 8.8 Axle Tag Decoder Diagram - Ratio, Plant Code, Build Date (Bronco) Ford 5.0L F-Series/Bronco Spark Plug Wire Routing & Firing Order 1-3-7-2-6-5-4-8 Ford certification label layout with rear axle code capacity and ratio chart and front axle code table 1994 Ford Bronco Door Data Spec Plate - VIN, GVWR, Axle & Paint Codes 1994 Ford Bronco Special Paint Code Label - M# 6373, Sales/Paint Code UA Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16 1995 Ford Bronco Vehicle Certification Label - VIN, GVWR, Axle & Paint Codes Holden VE / 2009 Pontiac G8 Data Plate - LS3, M10 Trans, FE3, G84 Axle Codes 1996 Ford Bronco VIN Data Plate - GVWR, Axle, Trans & Paint Codes (10/95) '96 Bronco door certification label dated 04/96 with GVWR, axle ratings and P235/75R15XL tire data '81 Ford F-Series door certification label dated 10/80 with GVWR, axle ratings and P235/75R15SL tire data 103data & spec plates1992-1996 Ford Bronco More reference Trailer Connector Wiring Diagram - 4-Pin Flat, 6-Pin Round & 7-Blade PinoutsWiring diagram Ford Bronco PCV Valve & Crankcase Ventilation Tube Exploded DiagramExploded parts Ford RABS Rear Antilock Brake System Troubleshooting Chart (1992 Bronco)Service procedure '91-93 Ford truck drive axle application chart for Bronco, F-150, F-250, F-350 and F-Super DutyManual page 1992 Ford Bronco/F-Series 5.0L 5.8L Engine Compartment Connector LocationsSchematic Ford 5.0L V8 Vacuum Hose Routing Diagram - EGR, AIR, FPRC & Carbon CanisterVacuum routing Ford 255/302/351W & 351M/400 V8 Intake Manifold Bolt Tightening SequenceTorque spec Brake Booster to Master Cylinder Adapter Plate Blueprint - Ford Bronco SwapBlueprint 1994-1995 BMW 3 Series Owner's Manual Booklet Set - Warranty, Radio & AccessoriesBrochure Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift ControlFuse chart

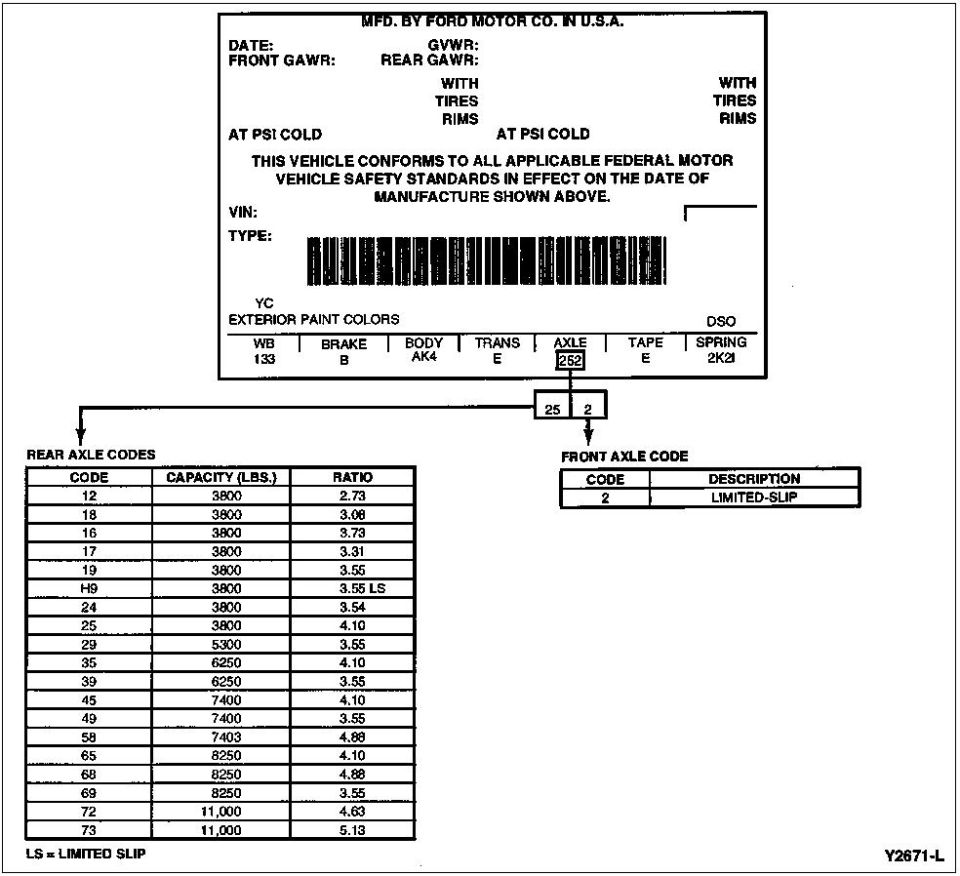

Ford certification label with axle code 252 decoded: rear axle codes listing capacity and ratio, 2.73 to 5.13, and front axle code 2 for limited-slip.

Part of 1992-1996 Ford Bronco Data & Spec Plates

AI caption · Photo 91 of 272

W DATE: GVWH: FRONT GAWH: REAR GAWR: wrrH WITH YIREs TIRES RIMS RIMS AT PSI COLD AT PSI COLD THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR VEHICLE SAFETV STANDARDS IN EFFECT ON THE DATE OF MANUFACTU FIE SHOWN ABOVE. vm: | "PE: IIIIIIIIMIHIIIIIIMIIMIIWI vc EerRm PAINT COLORS use we 5am: aouv TRANS AXLE TAPE spams m a Am 5 E E ZKZ REAR AXLE CODES mom AXLE CODE mana .- LIMITEDSLIP LS x LIMITED SLIP YZGTI -L
