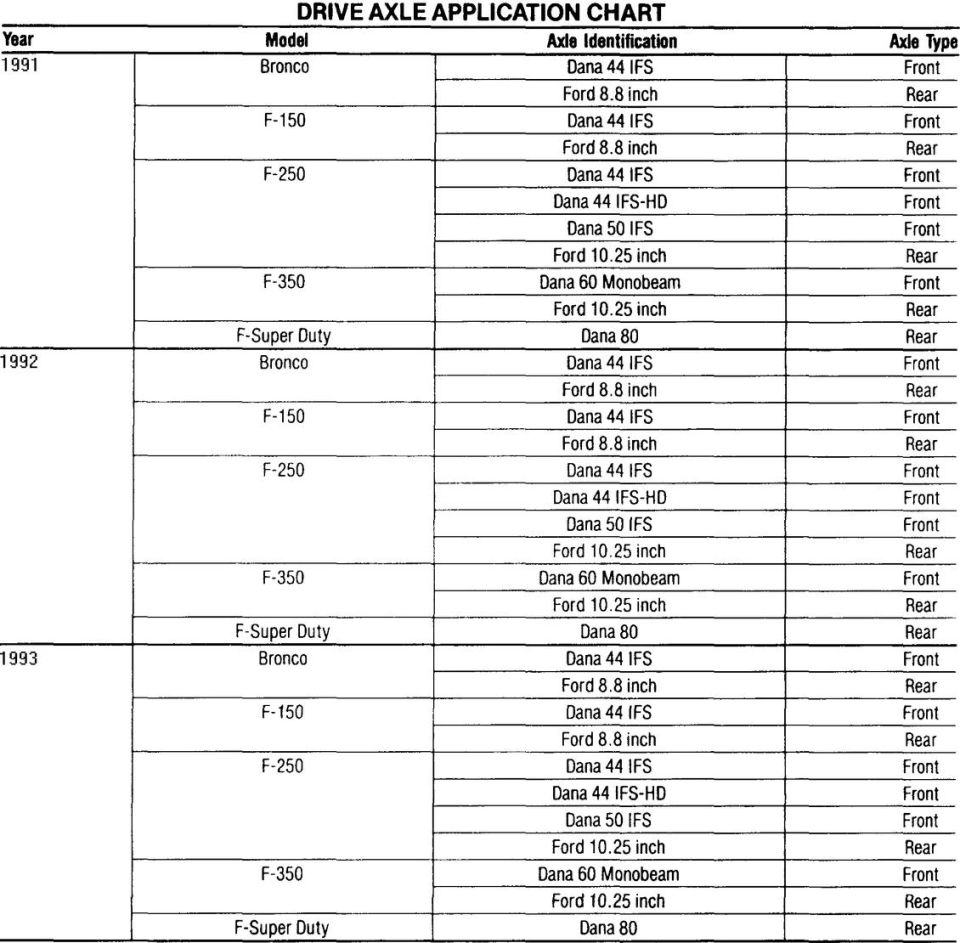

Drive axle application chart for 1991-1993 Ford trucks: Bronco Dana 44 IFS front and Ford 8.8 inch rear, plus Dana 50, Dana 60 Monobeam and Dana 80 fitments.

Part of 1992-1996 Ford Bronco Manual Pages

AI caption October 2005 · Photo 92 of 272

DRIVE AXLE APPLICATION CHART Year Model Am Identication Axis Type 1991 Bronco Dana 44 IFS From Ford 8.3 inch Rear F-150 Dana 44 IFS From Ford 8.8 inch Rear F-250 Dana 44 IFS Front Dana 44 IFS-HD Front Dana 50 IFS Front Ford 10 .25 inch Rear F-350 Dana 60 L From Ford 10.25 inch Rear F-Super Duty Dana 80 Rear 1992 Bronco Dana 44 IFS Front Ford 8 8 inch Rear F-150 -. Dana 44 IFS Front Ford 8.8 inch Rear F250 Dana 44 IFS From Dana 44 IFS-HI) Front Dana 50 IFS Front Ford 10.25 Inch Rear P350 Dana 60 From Ford 10.25 inch Rear F~Super Duty Dana 80 Rear 1993 Bronco Dana 44 IFS Front Ford 8.8 inch Rear F-150 Dana 44 IFS Front Ford 88 inch Rear F-250 Dana 44 IFS Front Dana 44 IFS-H0 Front Dana 50 IFS Front Ford 10.25 inch Rear F-350 Dana 60 Front Ford 10.25 inch Rear F-Super Duty Dana 80 Rear
