1992 Ford Probe Function Control Actuator Location - A/C Heating Unit Diagram

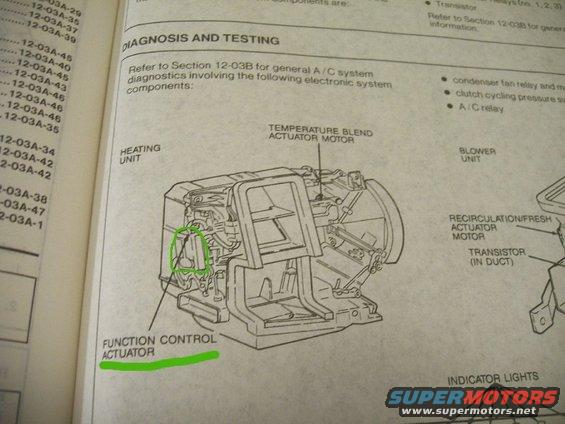

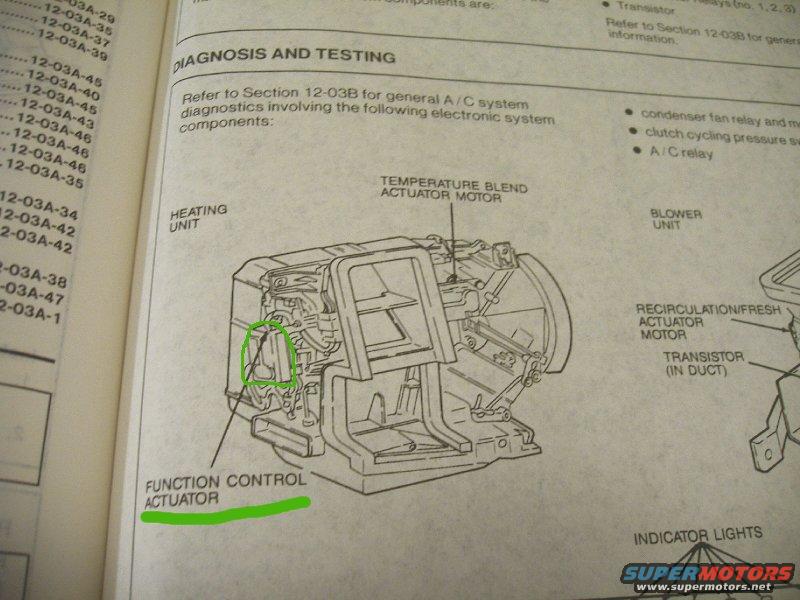

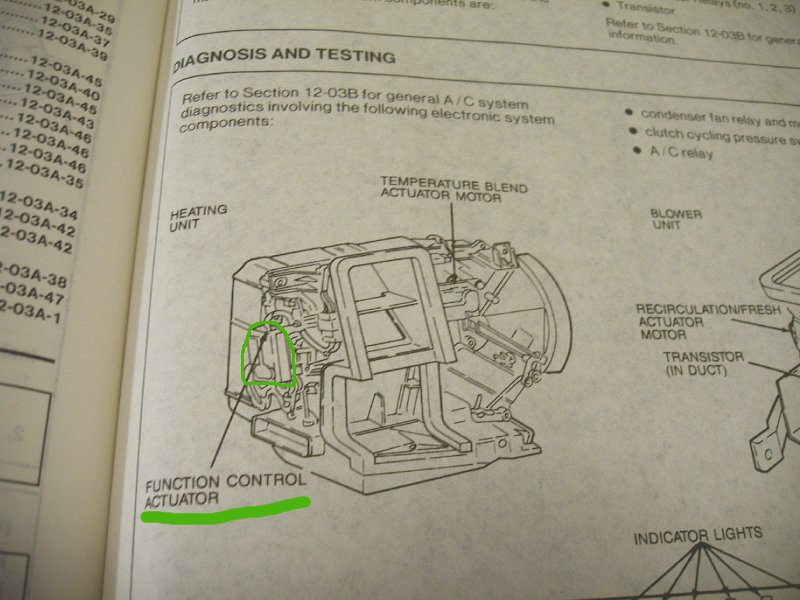

This is a scanned page from a Ford factory service manual covering the climate control (heating/air conditioning) system, filed under Section 12-03A/12-03B. The page begins a 'DIAGNOSIS AND TESTING' section, directing the reader to Section 12-03B for general A/C system diagnostics involving electronic components including the condenser fan relay, clutch cycling pressure switch, A/C relay, and transistor. The main feature is an exploded/cutaway line illustration of the HVAC assembly with labeled callouts identifying the heating unit, temperature blend actuator motor, blower unit, recirculation/fresh actuator motor, transistor (in duct), function control actuator, and indicator lights. The uploader has highlighted the FUNCTION CONTROL ACTUATOR label with green marker and circled its location on the heating unit illustration, indicating that locating this component is the purpose of the scan. The left edge shows a partial table-of-contents column with page references in the 12-03A range (e.g., 12-03A-29 through 12-03A-47). A reader can use this page to identify where the function control actuator and other electronic climate control components are physically located within the HVAC housing, and where to find the corresponding diagnostic procedures (Section 12-03B).
