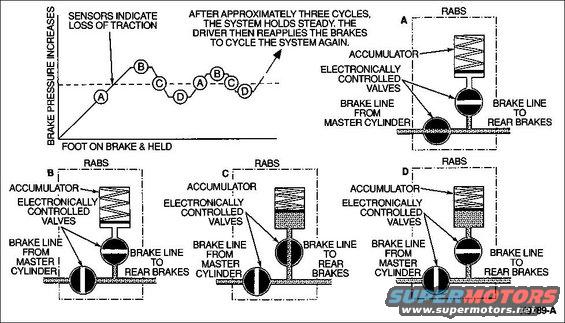

Diagram of RABS rear anti-lock brake system pressure cycle and v…

RABS & RABS-II Function
IF THE IMAGE IS TOO SMALL, click it.

The dotted box is the RABS valve assembly. The lower vavle is the Isolate; upper is Dump.

RABS II modules have been designed with Keep Alive Memory and are to be used to service all prior year RABS I systems, except 1987 and 1988 Bronco II vehicles.
