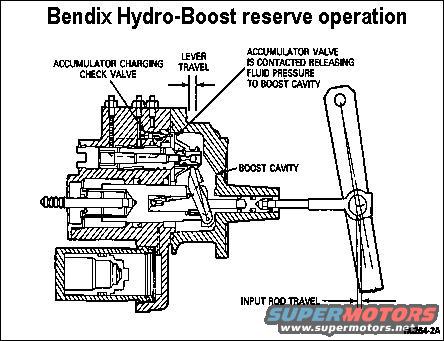

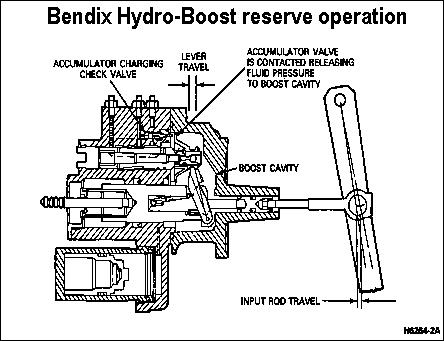

Hydro-Boost Reserve
The reserve braking system consists of a charging valve, an accumulator valve and a compressed gas accumulator. The system is open to the pressure port of the hydro-boost.

The accumulator is charged by the pump pressure during normal steering or braking operation through a check valve that communicates with the pump port.

The charging valve has an orifice and a check valve. Fluid from the pump passes around the check valve into the accumulator if the pump pressure exceeds the pressure in the accumulator. The charging rate is controlled by the orifice to minimize its effect on fluid flow to the steering gear. The check valve prevents reverse flow when the accumulator pressure is greater than pump pressure.

The accumulator valve is a small poppet-type valve held closed by the pressure stored in the accumulator. An actuator on the spool valve sleeve opens the accumulator valve when a stop with no pump pressure is made that requires use of the reserve system pressure.

Fluid pressure can also enter the accumulator from the boost chamber through the accumulator valve. This condition occurs whenever boost chamber pressure momentarily exceeds accumulator pressure.

A pressure relief valve vents the accumulator to the pump pressure port whenever pressure in the accumulator exceeds approximately 9,652 kPa (1,400 psi).
