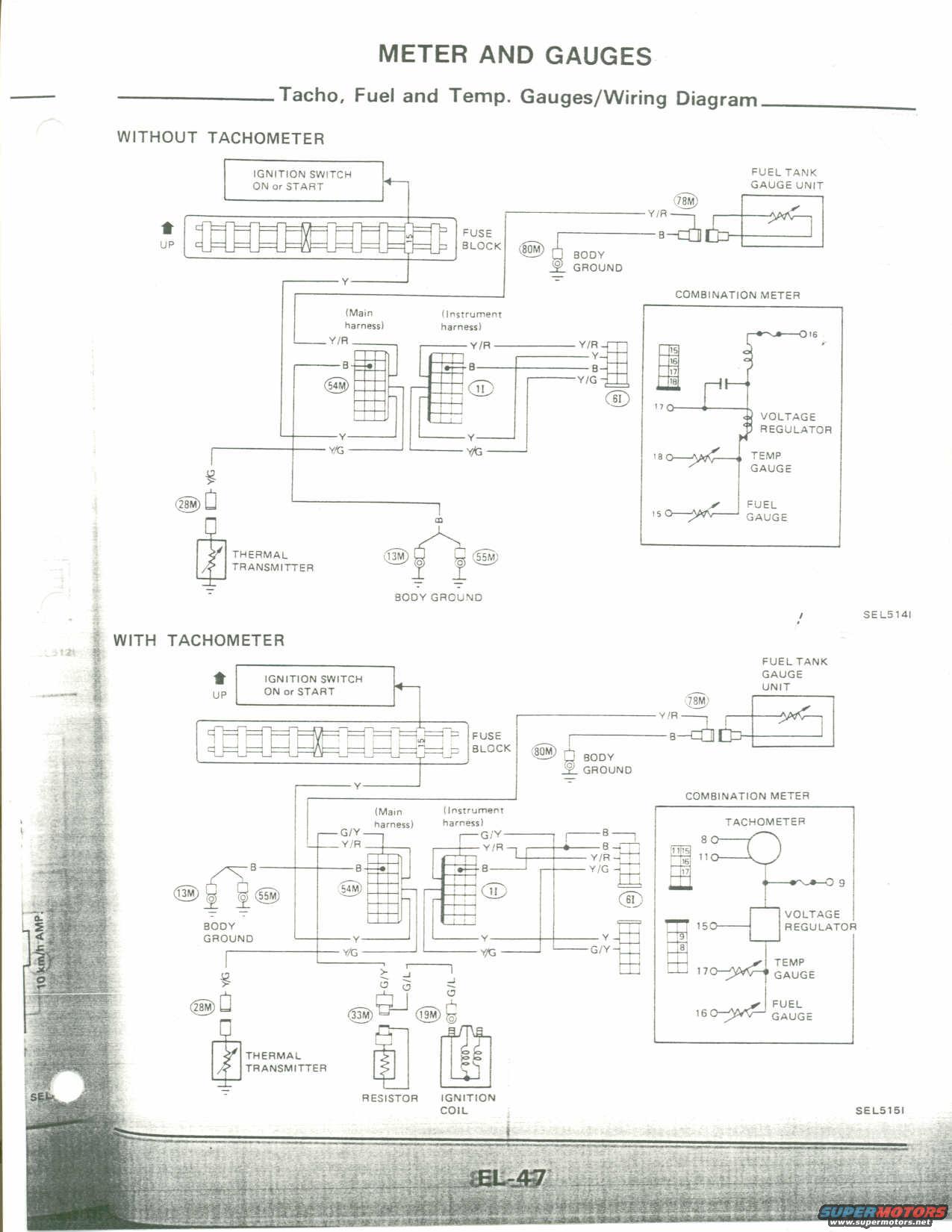

Wiring diagram for meter and gauges, showing tachometer and non-tachometer circuits

This diagram details the wiring for a vehicle's meter and gauges, including fuel, temperature, and tachometer circuits.
