1990 Nissan Micra 87 Service Manual picture

Home/ Registry/ Nissan/ Micra/ 1990 Nissan Micra/ Photo supermotors.net/registry/media/294118

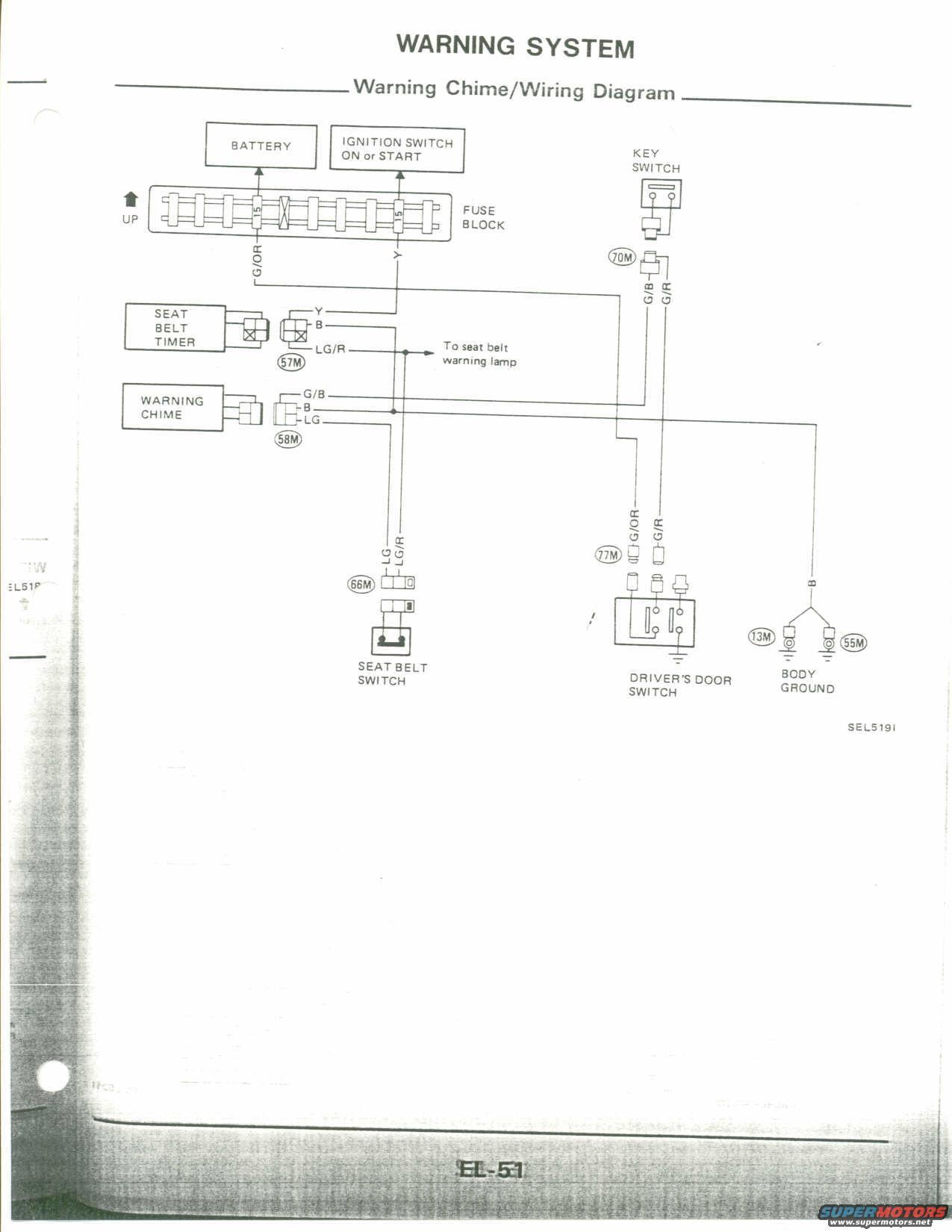

Wiring diagram for the warning system, showing battery, ignition switch, fuse block, key switch, seat belt timer, warning chime, seat belt switch, driver's door switch, and body ground

‹ ›

This diagram illustrates the electrical connections for a vehicle's warning system, including components like the fuse block and various switches.

AI caption February 2006 · Photo 397 of 412

WARNING SYSTEM - Warning Chime/Wiring Diagram IGNITION SWITCH BATTERV KEY ON or START SWITCH ? P . FUSE UP BLOCK g > .3! L 2 E a U SEAT z BELT . TIMEFI LG/R Ton-nun warmnglamp G/B WARNING Ia CHIME .LG @ K ' Q E I z 2 u ' 3 g @9 D . I I a. i I :st I .Im g E Q ~ I. I [I9 [I SEAT sen aouv SWITCH 33:33: DOOR GROUND SELSISI 2
