1974 Ford Bronco Door Handle & Lock Cylinder Exploded Parts Diagram

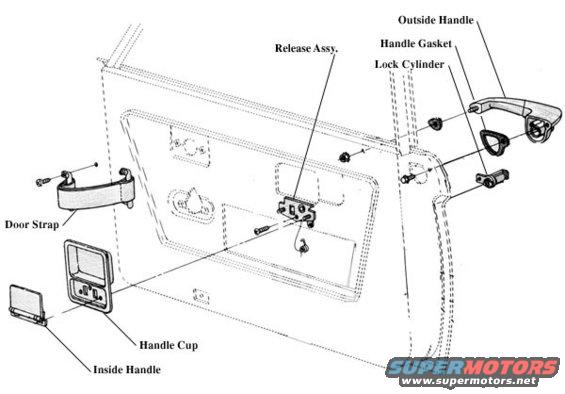

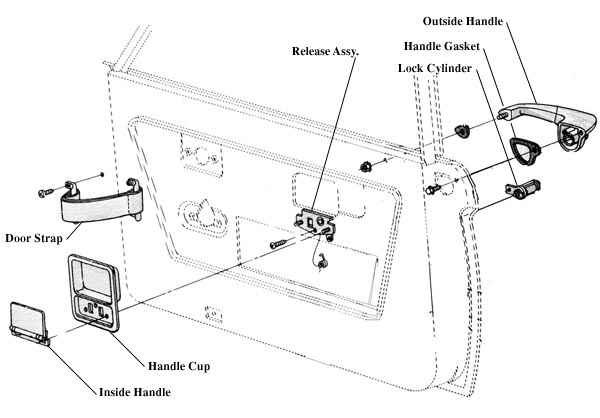

This document is an exploded parts diagram of a door handle and latch hardware assembly for a vehicle door. It shows a line-art illustration of a door shell (viewed from the interior side) with the associated handle components pulled apart along assembly lines to indicate how they fit together. Seven components are labeled with callout arrows: the Outside Handle with its Handle Gasket and Lock Cylinder mounting to the exterior of the door; the Release Assy. (release mechanism) mounted inside the door; and, on the interior side, the Door Strap, Handle Cup (the recessed bezel in the door panel), and Inside Handle. Small fasteners (screws) are illustrated for the door strap, release assembly, and handle hardware, though no part numbers, torque values, or fastener specifications are printed on the diagram. A reader can learn the relative positioning and installation order of the door handle components — for example, that the lock cylinder and gasket install with the outside handle from the exterior, while the inside handle mounts into the handle cup on the door panel. The document contains no year, model, or applicability text of its own; it was uploaded as reference material for a 1974 Ford Bronco.
