1974 Ford Bronco Dashboard Exploded Parts Diagram - Dash Panel Assembly

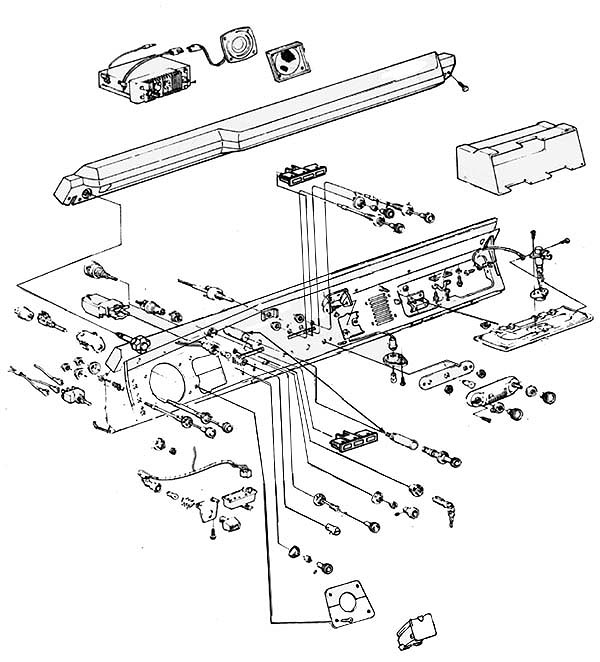

This document is an exploded parts diagram of a dashboard (instrument panel) assembly, uploaded to a 1974 Ford Bronco gallery as "dash.jpg". The illustration shows the main dash panel structure with a large round opening for the instrument cluster, the padded dash top/crash pad, a dash-mounted speaker with grille, a radio unit, a glove box liner, and numerous smaller components including switches (likely headlight, wiper, and ignition), control knobs and cables, bezels, mounting brackets, retaining plates, screws, nuts, and washers. Assembly relationships are indicated by leader lines showing how components fit into the dash panel from front and rear. Notably, the scan contains no legible text: there are no visible part numbers, callout numbers, legends, or captions, so specific part identification cannot be made from this image alone. The document is useful as a visual reference for understanding how the dashboard components of an early Ford Bronco fit together during disassembly or restoration, showing the relative positions of switches, controls, radio, speaker, and trim pieces. It is part of a larger album of exploded parts and wiring diagrams for the same vehicle. No year, model, or applicability statement appears on the drawing itself.
