Early Ford Bronco Front Windshield & Cowl Seals Exploded Parts Diagram

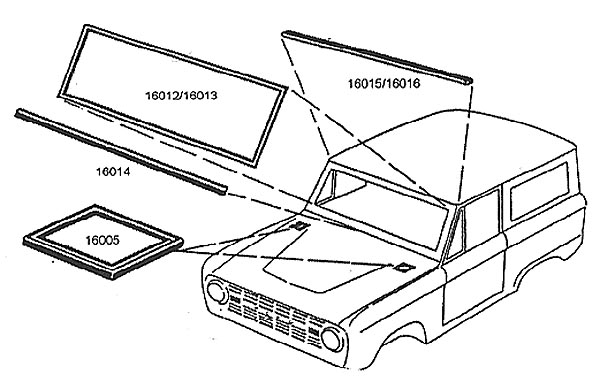

This document is an exploded parts illustration showing front body seals and weatherstrips for an early Ford Bronco. A line drawing of the Bronco body (front three-quarter view) is shown with four callout part group numbers connected by leader lines to their installed locations. Part group 16012/16013 identifies the large windshield glass seal/weatherstrip surrounding the windshield opening. Part group 16015/16016 identifies the strip along the top of the windshield frame/roof drip area. Part 16014 is a long narrow strip seal shown fitting along the cowl/base of the windshield area, and part 16005 is a rectangular gasket/seal, apparently for the cowl vent or hood-related opening on the front of the body. The diagram contains no text beyond these part group numbers, no legend, table, torque values, or year applicability statement is printed. A reader can use this illustration to identify the Ford part-number groups for front windshield and cowl seals when ordering replacement weatherstripping, and to see where each seal installs on the body. It was uploaded to a 1974 Ford Bronco gallery as part of a larger set of parts diagrams covering body, seals, and mechanical systems.
