Early Ford Bronco Rear Body Seals & Weatherstrip Exploded Parts Diagram

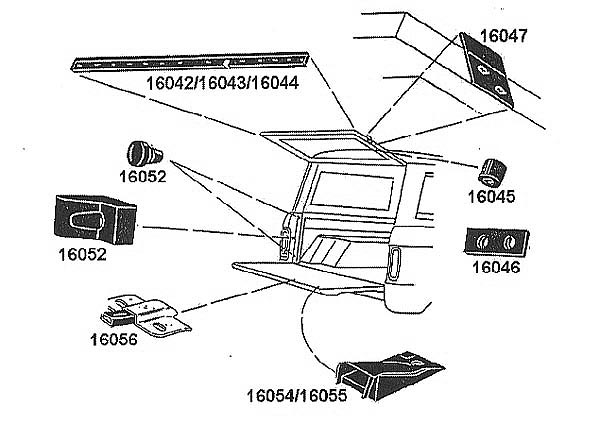

This document is an exploded parts diagram showing rear body seals and related components for an early Ford Bronco, viewed from the rear quarter with the tailgate lowered and liftgate raised. Callout leader lines connect each part illustration to its location on the vehicle body. The parts identified by Ford basic part group numbers are: a long weatherstrip/seal strip labeled 16042/16043/16044 spanning the top of the illustration; a corner seal or pad labeled 16047 at the upper right; a round plug/grommet labeled 16052 and a second box-shaped component also labeled 16052 on the left side; a small round plug labeled 16045 on the right side; a rectangular plate with holes labeled 16046 on the right; a bracket assembly labeled 16056 at the lower left; and a larger seal or panel piece labeled 16054/16055 at the bottom. No text legend, table, year designation, or full part numbers with prefixes/suffixes appear on the scan — only the basic group numbers and the line art. A reader can use this diagram to identify the location and general shape of each rear seal component and its Ford basic part number for ordering or restoration reference.
