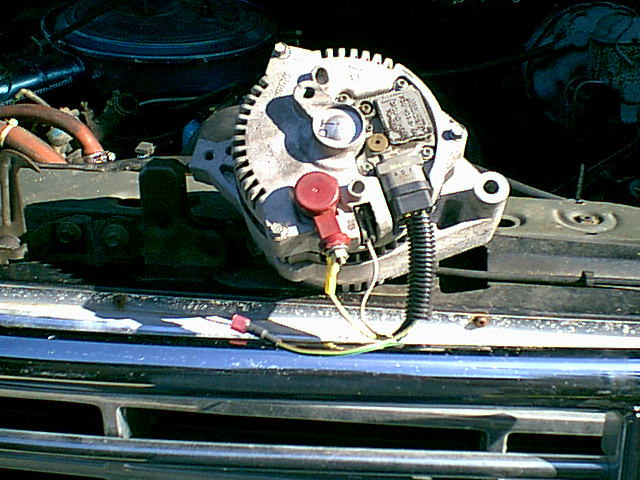

Alternator mounted in engine bay with red battery terminal and w…

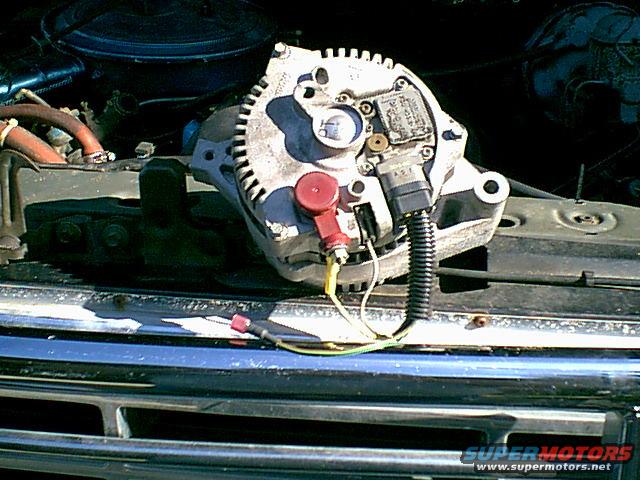

Here the harness is all connected and ready for install. the wire not connected it the IGN hot or on wire, when it senses 12V the alt turns on. the white went to the same location i did before and the yellow goes to the Bat+ post on the alt. easy install.

Owner caption October 2006 · Photo 739 of 2329
