Disassembled twin-beam front axle halves with brake rotor and ca…

‹ ›

6-inch liftView all 12

Dark blue lifted 1980s Ford Bronco on mud tires parked in driveway

Dark blue Ford Bronco with hardtop and BFGoodrich A/T tires parked at a suburban curb

Old cracked rubber suspension bushings and steel inner sleeves removed and laid on concrete floor

Underside of raised truck showing blue V8 engine, headers and trans pan while a person works below

Freshly painted black frame bracket bolted underneath truck with new zinc hardware

Dark blue Ford Bronco on jack stands with rear wheel off and tools scattered on a carport floor

Dual white Pro Comp shocks with blue boots and grey coil spring on lifted blue truck front axle

Blue truck front coil spring and white shocks exposed, red floor jack and tools on garage floor

Front disc brake with blue caliper, rotor and locking hub on a painted black beam axle

Underside view of a black rear axle housing and differential with leaf spring and brake plate

Disassembled rear drum brake showing shoes, wheel cylinder and springs on the axle flange

12photos in this albumView all

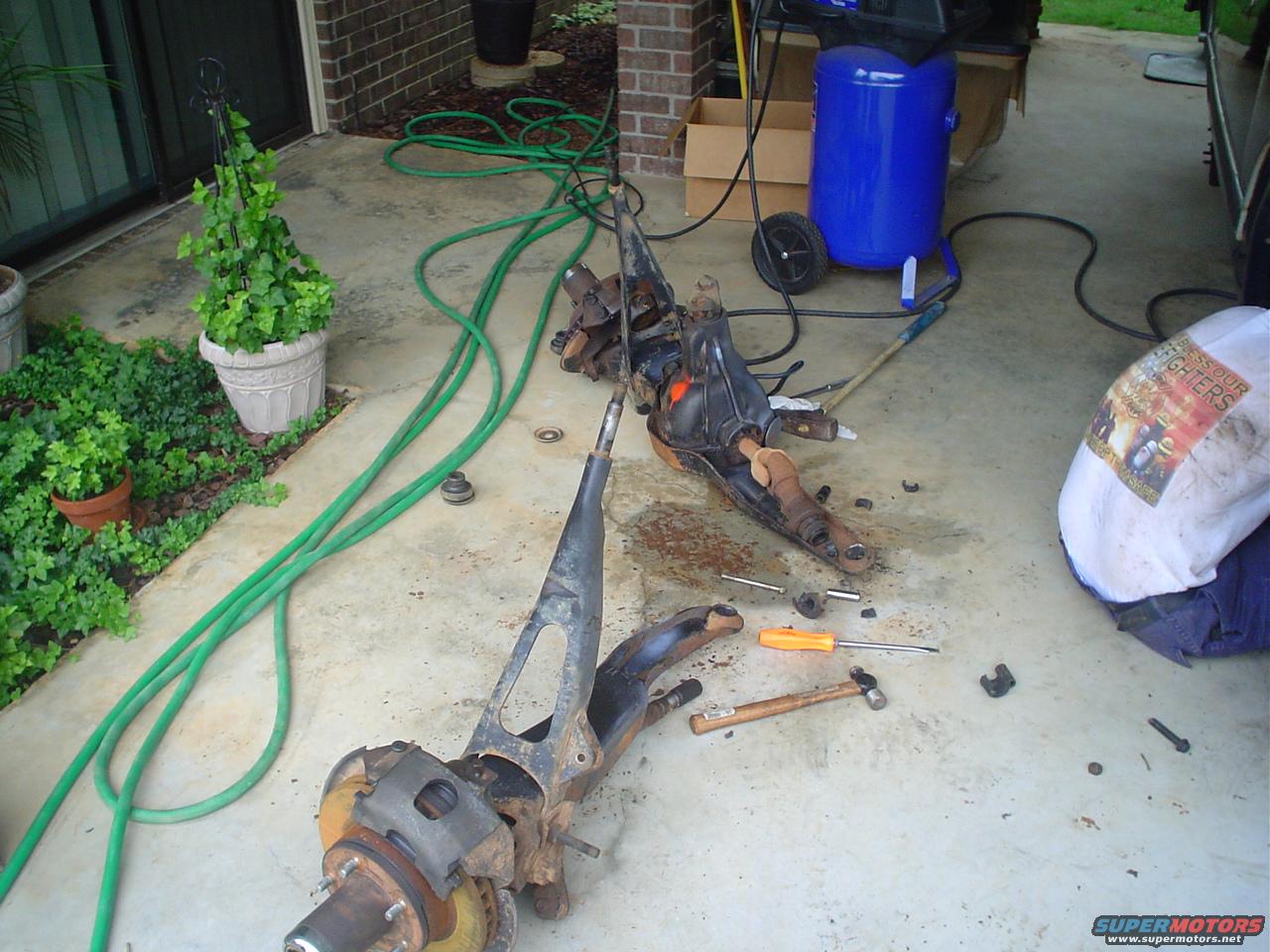

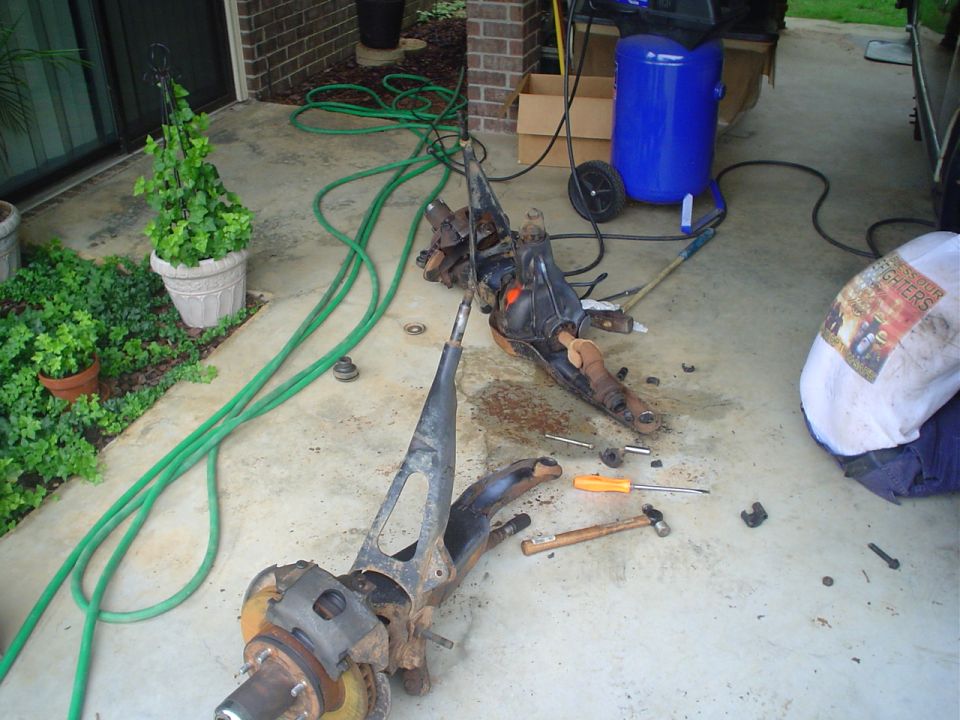

Both halves of a Twin-Traction-Beam style front axle lie disassembled on a concrete patio during a suspension teardown, one still carrying its disc brake rotor, caliper and radius arm bracket. Scattered bushings, hammers and a screwdriver sit on the slab beside a green garden hose, a blue air compressor and a rag-covered pile.

AI caption November 2006 · Photo 377 of 642
