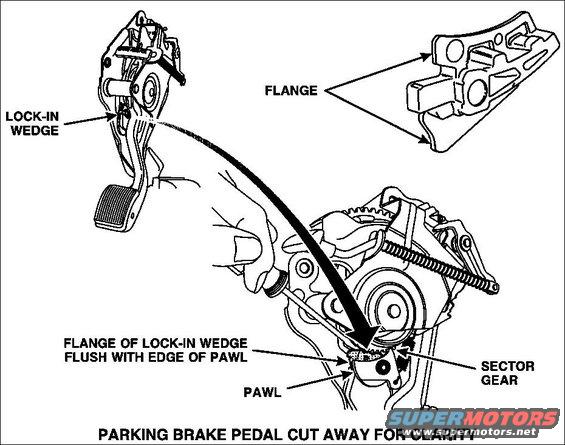

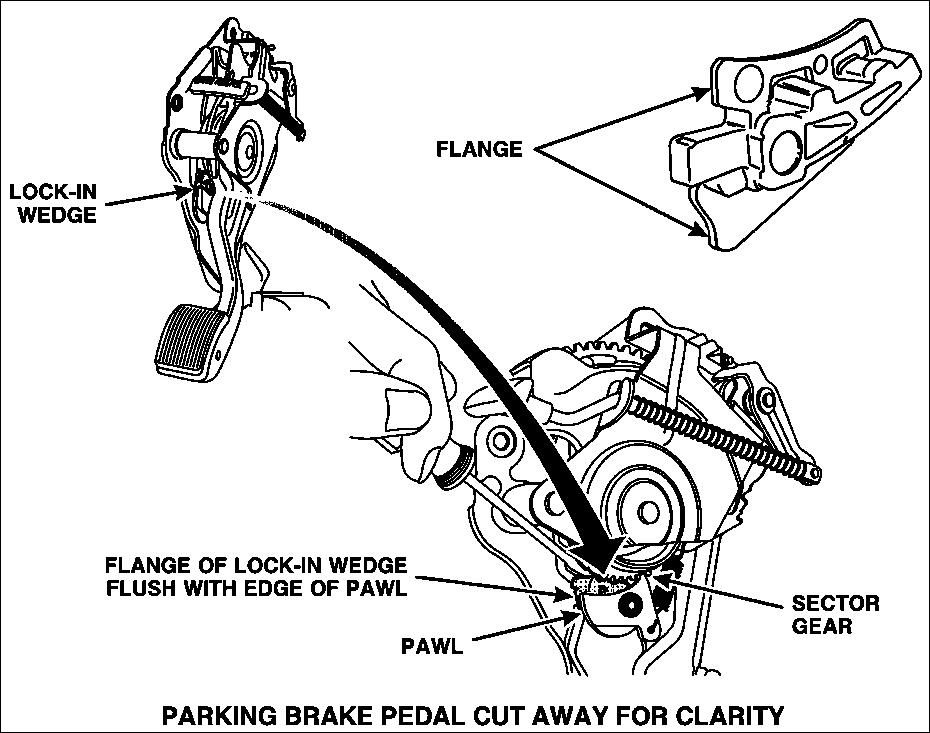

Parking brake pedal cutaway diagram showing lock-in wedge, pawl…

1. Without moving the parking brake pedal, inspect the parking brake control assembly to determine if the lock-in wedge has been previously installed.

A. If the lock-in wedge has not been previously installed or has fallen out, proceed to Lock-In Wedge Service Procedure (Next Image).

B. If the lock-in wedge has been previously installed, it must be inspected for proper installation. Inspect to make sure the flange of the lock-in wedge is flush with the edge of the pawl. Place a small screwdriver between the lock-in wedge and the sector gear. Apply a firm, up and down prying force to the wedge. The wedge should feel very stiff, with no movement between the sector gear, wedge and pawl.
-- If no movement is noted, the wedge has been properly installed. Return the vehicle to the owner.
-- If movement is noted, proceed to Lock-In Wedge Service Procedure (Next Image).
