Home/ Registry/ Ford/ Bronco/ 1980-1986/ “tainted love”/ Photo supermotors.net/registry/media/52999

Snap-ring pliers working on a red front hub with splined shaft a…

‹ ›

Front BearingsView all 12

Tools on concrete: torque wrench in case, socket, snap-ring pliers, wrench, screwdriver.

Front disc brake, rotor, red hub with studs, locking hub and caliper over a jack stand

Red front hub and rotor with locking hub removed, exposing splined axle stub during service

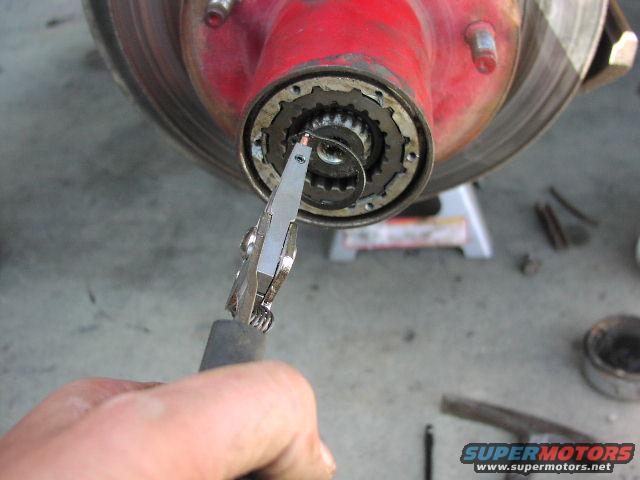

Hand removing a snap ring from a splined axle shaft inside a front locking hub

Exposed splined axle hub on red rotor with parts on garage floor

Black hub socket tool and three notched lock rings on concrete

Close-up of splined stub axle and hub with lug studs over a jack stand on concrete

Red-painted front hub and brake rotor with wheel studs on concrete, tapered bearing beside it

Machined brake rotor with rusty hub, lug studs, and center bearing bore

New and used Timken wheel bearings and hub seals laid out on concrete

Chrome locking hub dial and two splined hub internals laid on a concrete floor

12photos in this albumView all

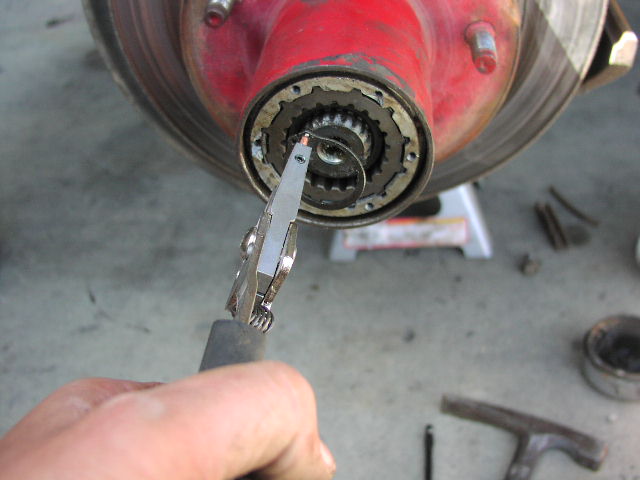

Close-up of a red front hub/spindle assembly being serviced, with a pair of snap-ring pliers gripping the internal splined lock hardware. The disassembled part shows a splined shaft, retaining ring and gasket, with tools scattered on a concrete floor.
