Where is the fuse panel located on this vehicle?

The fuse panel is located above the accelerator pedal on the dash panel.

Which fuse protects the horn and cigarette lighter?

Position 6, a 20 amp fuse, protects the horn and cigarette lighter.

What protects the windshield wiper motor?

A 6.0 amp circuit breaker at position 3 protects the windshield wiper motor.

What circuits are on the headlight switch circuit breakers?

An 18 amp circuit breaker in the headlight switch protects the headlights and high beam indicator; a 15 amp circuit breaker protects the park/tail/side marker lamps, license plate lamp, turn indicator lamp (1974 models only), and automatic shift indicator lamp (PRND21). Neither is shown on the diagram.

What fuse is used for the heater and air conditioner?

Position 9 uses a 15 amp fuse for the heater and a 30 amp fuse for the air conditioner.

Home/ Registry/ Ford/ Mustang II/ 1974-1978/ “Cobra II”/ Photo supermotors.net/registry/media/568254

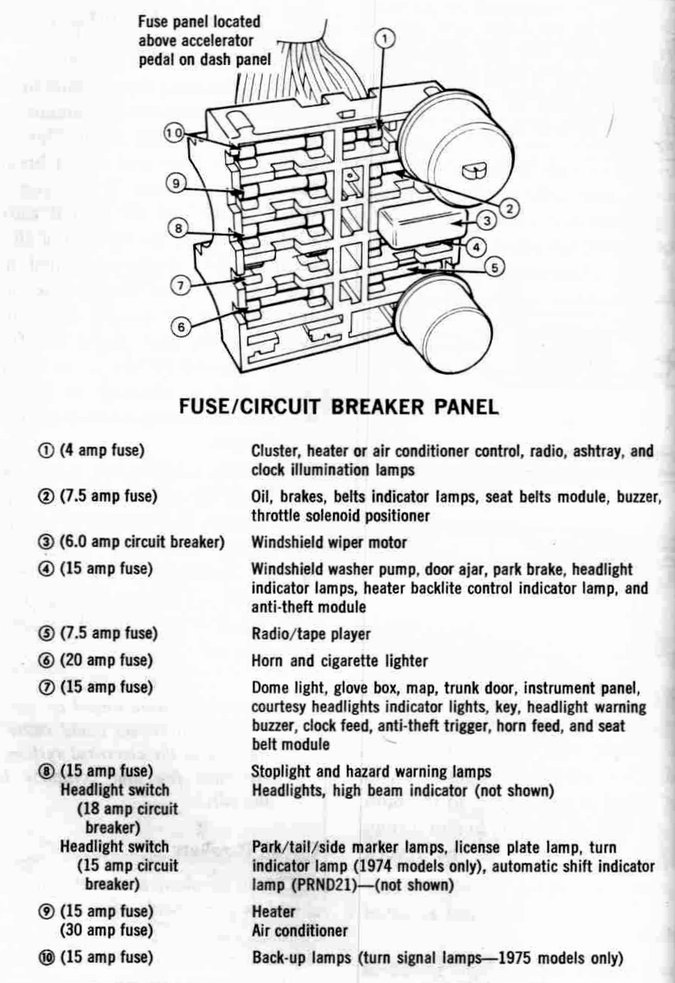

Ford Mustang II Fuse Box Diagram – Fuse/Circuit Breaker Panel & Amp Ratings

Ford fuse/circuit breaker panel chart with fuse amperage ratings and protected circuits dash panel

‹ ›

Fuse/circuit breaker panel diagram located above the accelerator pedal: lists each numbered fuse amperage and the circuits it protects (cluster, wipers, radio, horn, headlights, A/C, back-up lamps).

AI caption September 2007 · Photo 286 of 290

This scanned reference page is a fuse/circuit breaker panel chart for a Ford vehicle (uploaded as documentation for a 1978 Ford Mustang II). A labeled exploded diagram at the top shows the fuse panel, which the caption states is located above the accelerator pedal on the dash panel, with numbered callouts 1 through 10 pointing to individual fuse positions and two round circuit breaker components. Below the diagram, a legend titled 'FUSE/CIRCUIT BREAKER PANEL' lists each numbered position, its amperage rating (fuse or circuit breaker), and the circuits it protects. Ratings range from a 4 amp fuse for illumination lamps to a 30 amp fuse for the air conditioner. Notable entries include a 6.0 amp circuit breaker for the windshield wiper motor, integral headlight-switch circuit breakers (18 amp for headlights/high beam, 15 amp for park/tail/side marker and related lamps), and model-year notes indicating the turn indicator lamp applies to 1974 models only and the position 10 fuse protects turn signal lamps on 1975 models only. A reader can use this chart to identify which fuse or breaker protects a given circuit, its correct amperage, and its location on the panel.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is the fuse panel located on this vehicle?: The fuse panel is located above the accelerator pedal on the dash panel.
Which fuse protects the horn and cigarette lighter?: Position 6, a 20 amp fuse, protects the horn and cigarette lighter.
What protects the windshield wiper motor?: A 6.0 amp circuit breaker at position 3 protects the windshield wiper motor.
What circuits are on the headlight switch circuit breakers?: An 18 amp circuit breaker in the headlight switch protects the headlights and high beam indicator; a 15 amp circuit breaker protects the park/tail/side marker lamps, license plate lamp, turn indicator lamp (1974 models only), and automatic shift indicator lamp (PRND21). Neither is shown on the diagram.
What fuse is used for the heater and air conditioner?: Position 9 uses a 15 amp fuse for the heater and a 30 amp fuse for the air conditioner.
