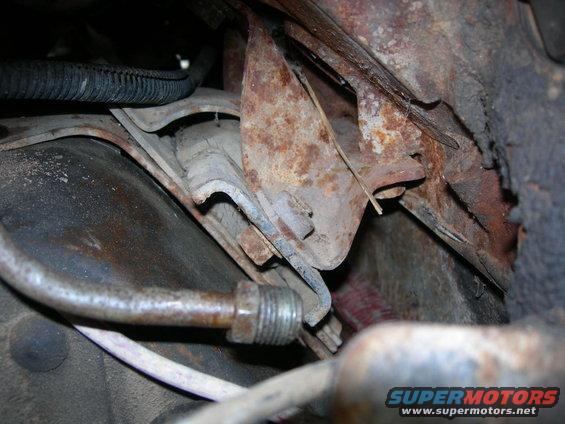

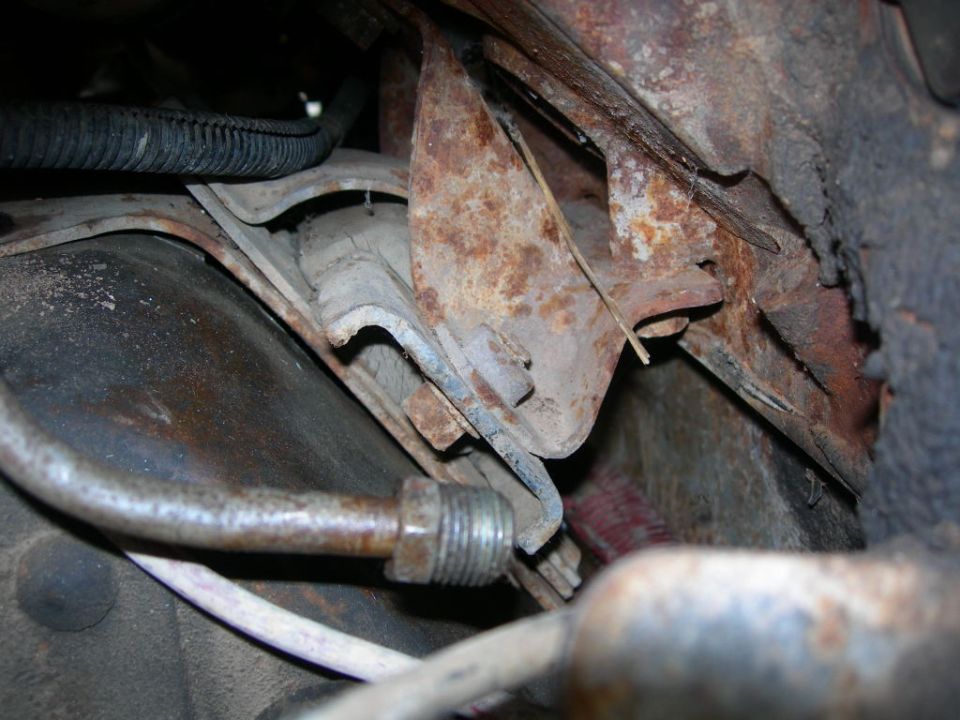

aug17car0004.jpg Passenger side mount installed.  You have to elongate the subframe hole under this mount.  The motor mount bolts will hit the subframe if you dont.  Also, the bottom holes of the motor mount plate have to be drilled into the subframe on BOTH sides of the subframe (drivers and passenger).
aug17car0004.jpg | Hits: 475 | Posted on: 8/17/08 | View original size (149.31 KB)

Passenger side mount installed. You have to elongate the subframe hole under this mount. The motor mount bolts will hit the subframe if you dont. Also, the bottom holes of the motor mount plate have to be drilled into the subframe on BOTH sides of the subframe (drivers and passenger).
