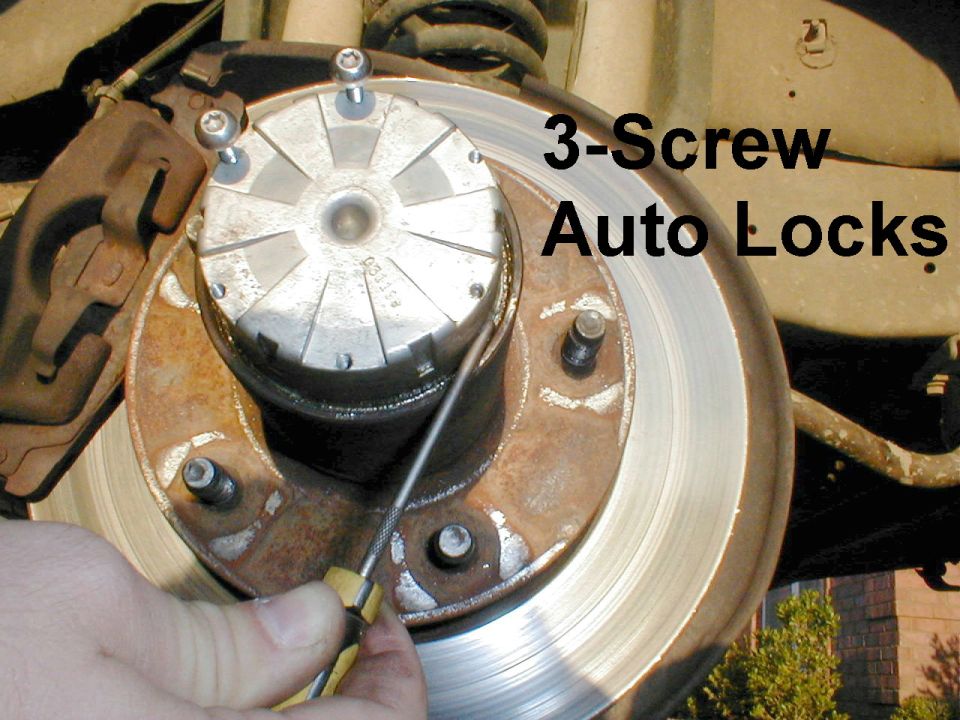

b32.jpg 3-screw Warn Automatic Hub Locks ([url=https://www.amazon.com/dp/B004M68EU6]F6TZ-1K105-AA[/url])

Use a sharp pick to remove lock body retaining ring by finding the ends, then pulling one end up & out.  All hub locks (3-screw, 5-screw, OE manual, & aftermarket) have a retaining ring in this location.

See the NEXT photo...
b32.jpg | Hits: 10441 | Posted on: 7/13/03 | View original size (303.58 KB)

3-screw Warn Automatic Hub Locks (F6TZ-1K105-AA)

Use a sharp pick to remove lock body retaining ring by finding the ends, then pulling one end up & out. All hub locks (3-screw, 5-screw, OE manual, & aftermarket) have a retaining ring in this location.

See the NEXT photo...
