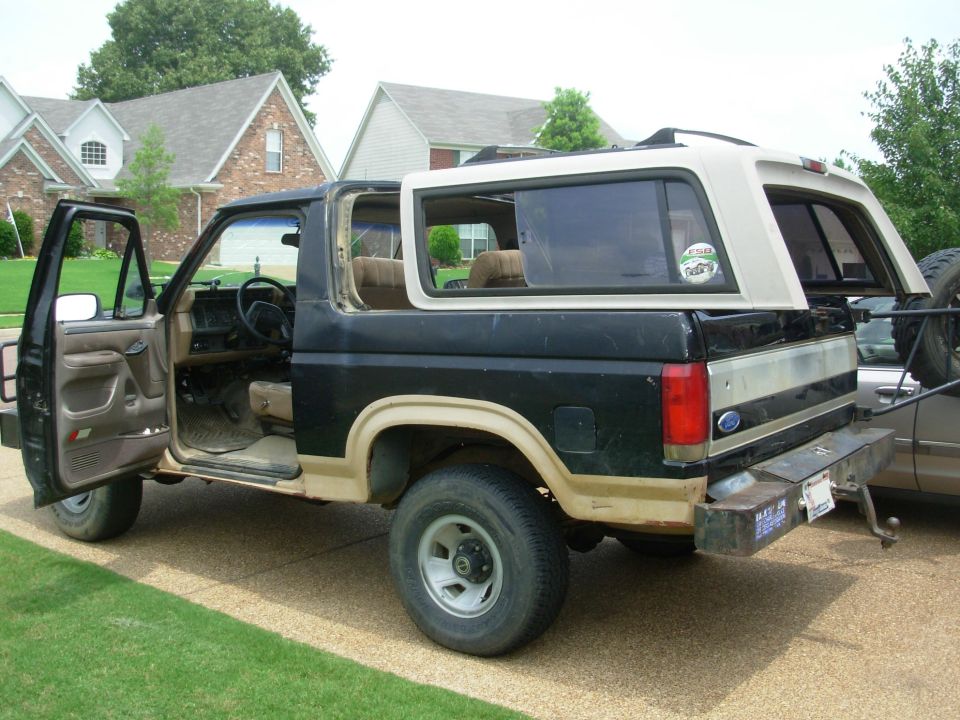

shell01.jpg After removing all the trim, bolts, & clips (including the '78-91 alignment pins), the shell can be lifted (so the '92-96 alignment pins clear the bedrails) & shifted rearward.  From there, simply remove the shell & set it out of the way so that its rubber gaskets won't be damaged.

Before reinstalling the shell, the entire sealing surface should be washed & coated with either silicone spray lube or a THIN film of silicone grease.
shell01.jpg | Hits: 7418 | Posted on: 6/13/09 | View original size (685.08 KB)

After removing all the trim, bolts, & clips (including the '78-91 alignment pins), the shell can be lifted (so the '92-96 alignment pins clear the bedrails) & shifted rearward. From there, simply remove the shell & set it out of the way so that its rubber gaskets won't be damaged.

Before reinstalling the shell, the entire sealing surface should be washed & coated with either silicone spray lube or a THIN film of silicone grease.
