1994 Ford F-250 Custom Bumper Blueprint - Hand-Drawn Design with Tube Sizes

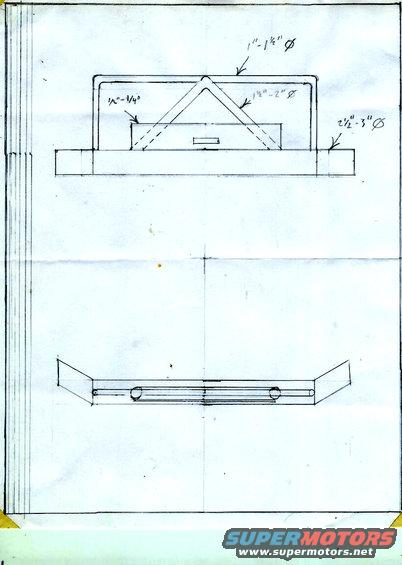

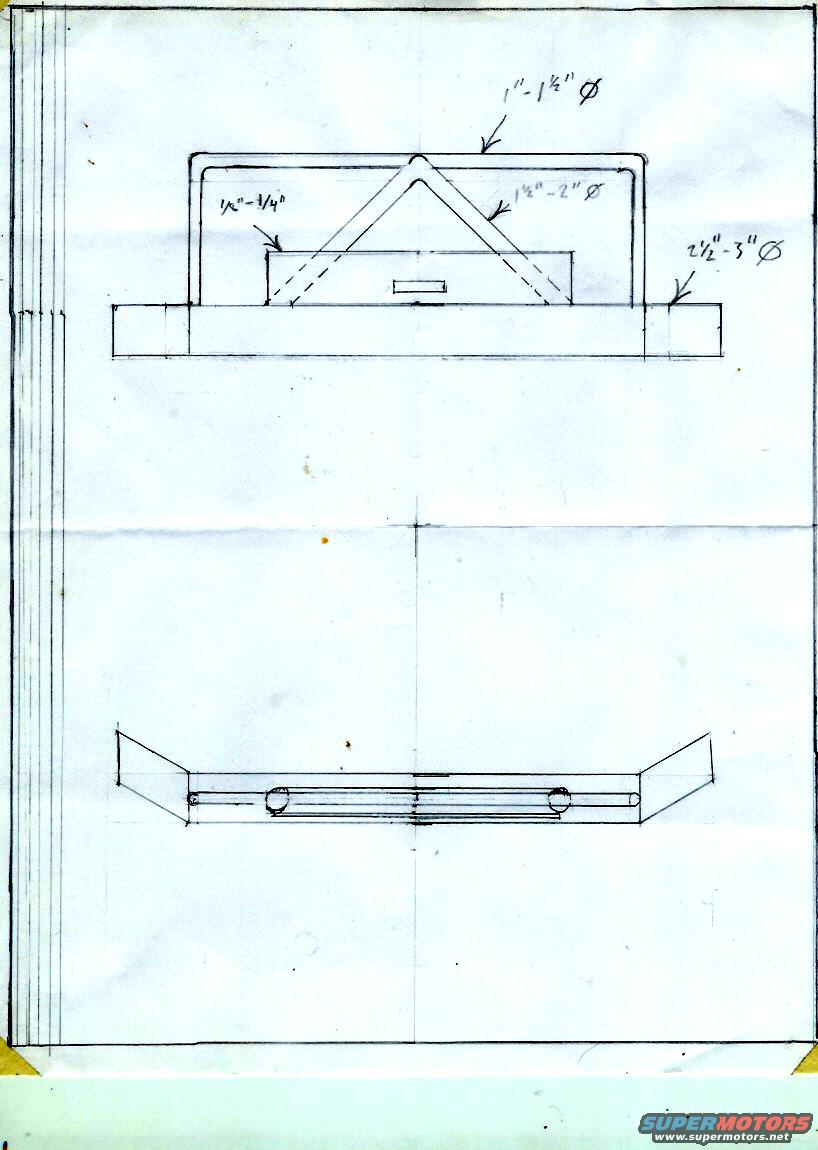

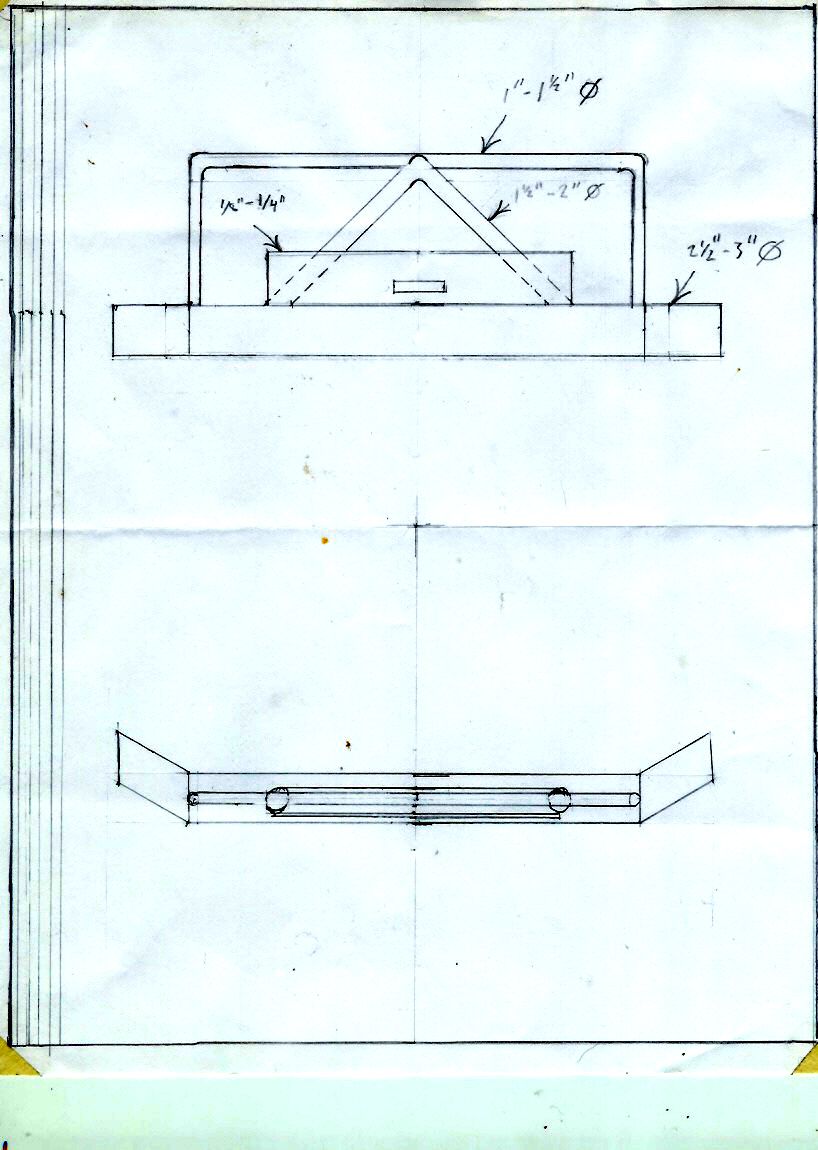

This document is a hand-drawn blueprint/sketch for a custom truck bumper design, uploaded to a 1994 Ford F-250 gallery. It contains two views: an upper front-elevation view showing a bumper with a triangular (A-frame style) tubular hoop or grille guard rising above the main bumper body, and a lower top-down (plan) view showing the bumper with angled/winged end caps and internal round tubing running horizontally through the assembly. The drawing includes four handwritten diameter/size callouts with arrows pointing to specific tubing elements: the upper hoop tube is labeled 1" - 1½" Ø, the diagonal cross-brace tubes are labeled 1½" - 2" Ø, the main bumper tube/body is labeled 2½" - 3" Ø, and a smaller element near the center box is labeled ½" - ¾". The ranges suggest the builder was still deciding on final tube sizes. No manufacturer text, part numbers, dates, dimensions of overall width, or vehicle applicability statements appear on the drawing. A reader can learn the intended tubing diameters and the general geometry (hoop, cross-braces, winged ends, receiver-style center slot) of this custom bumper fabrication plan.
