What is the Ford part number for the fuel filter on the 1997 7.3L diesel?

Item 1 in the diagram, the fuel filter, is part number 9155.

What part number is the fuel injector, and are its seals sold separately?

The fuel injector is part number 9F593 (item 21). The hold-down clamp, backup ring, cushion rings, upper/middle/lower seals, and injector gasket (items 22–29) are all listed as 'Part of 9F593' with no separate part numbers.

What is the part number for the high-pressure oil pump assembly?

Item 41, the High-Pressure Oil Pump Assy, is part number 9A543. Its flange gasket (item 40) is 9417, and the elbow (item 37) is part of 9A543.

What part number is the injection pressure regulator?

Item 38, the Injection Pressure Regulator, is part number 9C968.

Which parts make up the fuel filter water drain system?

The Fuel Filter Water Drain Hose is 9324 (item 54), the Water Drain Tube is 9L273 (item 55), the Fuel Tube Clamp is 9C334 (item 56), and the Water Drain Tube Clip is 9W310 (item 57).

Home/ Registry/ Ford/ F-250/ 1992-1997/ “Big Red”/ Photo supermotors.net/registry/media/1163421

1997 Ford 7.3L Power Stroke Fuel System Exploded Diagram & Part Numbers

'97 7.3L fuel system exploded parts diagram with numbered callouts and parts table

‹ ›

7.3L Fuel System
IF THE IMAGE IS TOO SMALL, click it.

. . .

Owner caption November 2020 · Photo 113 of 196

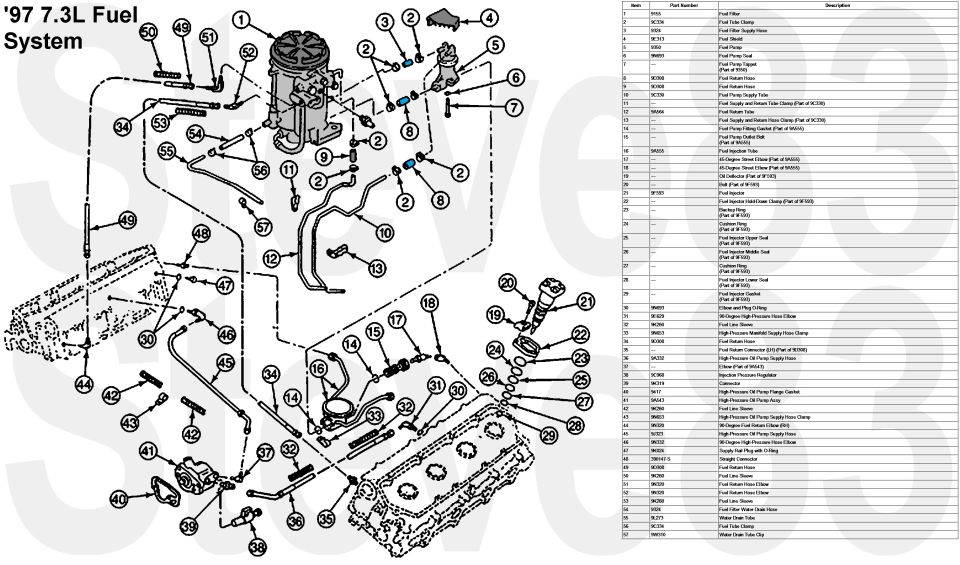

This document is an exploded parts diagram of the fuel system for a 1997 Ford 7.3L (Power Stroke diesel) engine, titled "'97 7.3L Fuel System." The illustration shows 57 numbered callouts pointing to components arranged around the engine, including the fuel filter housing, mechanical fuel pump, fuel injectors, high-pressure oil pump, injection pressure regulator, and the network of fuel supply, return, and water drain hoses, tubes, clamps, elbows, and seals. An accompanying legend table lists each item number with its Ford base part number (where applicable) and description. Key components include the fuel filter (9155), fuel pump (9350), fuel injector (9F593) and its associated seals, rings, and gaskets, the high-pressure oil pump assembly (9A543), injection pressure regulator (9C968), fuel injection tube (9A555), and various return hoses (9D308) and fuel line sleeves (9K260). Items that are serviced only as part of a larger assembly are noted with "Part of" references (e.g., injector seals are part of 9F593). A reader can use this diagram to identify individual fuel system parts by location, learn the correct part number for ordering replacements, and understand how the fuel supply, return, and high-pressure oil circuits physically route on the engine. The scan carries a "Steve83" watermark.
