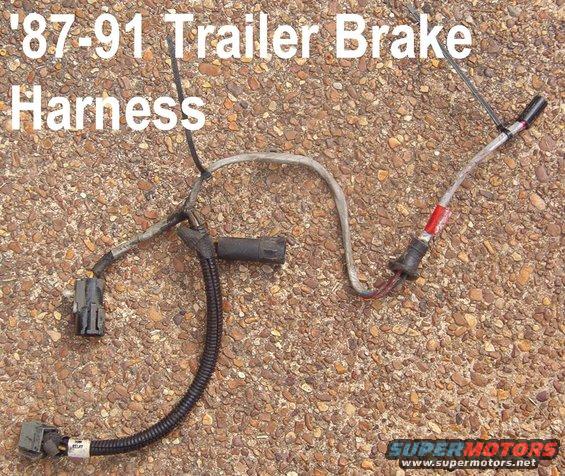

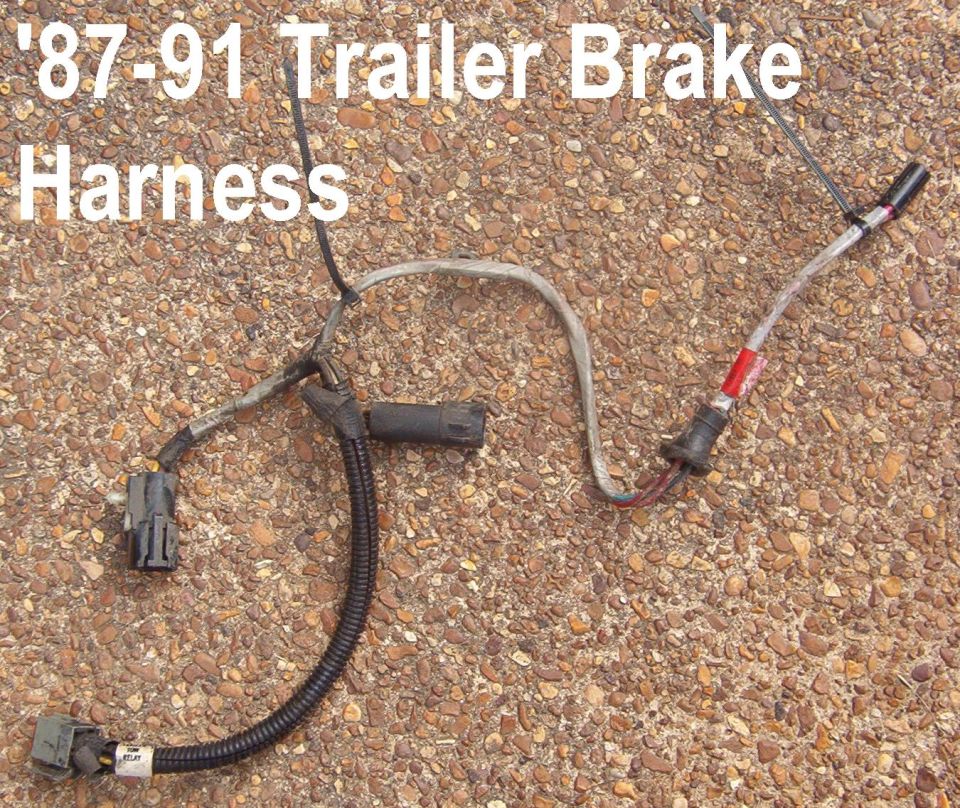

'87-91 trailer brake wiring harness laid out on gravel

‹ ›

Brake Controller Harness for '87-91 Trucks Also available via eBay.

The rubber grommet near the red sticker passes thru the firewall near the e-brake pedal. A second pigtail harness plugs into the round 3-pin connector and splices to the controller's wiring.
http://www.revbase.com/BBBMotor/Wd/DownloadPdf?id=57184

'80-86 similar
