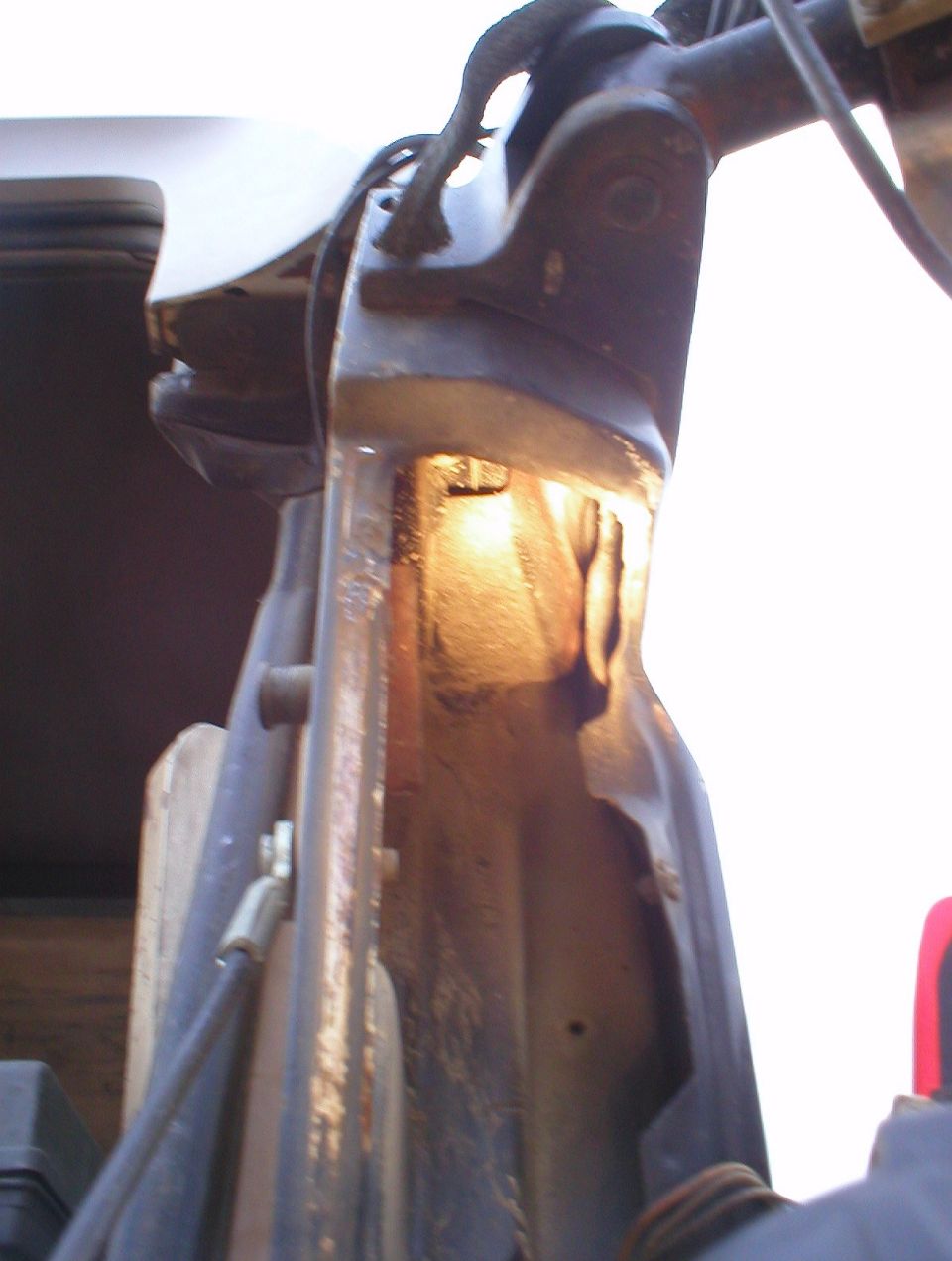

swingawaybrace1.jpg It's just a 1 1/2" long piece of 3/4" angle iron welded along the inboard edge pressed against the outer skin to keep it from buckling inward if the tire carrier swings forward too hard.  Several years later, I added a tether:

[url=http://www.supermotors.net/vehicles/registry/media/767955][img]http://www.supermotors.net/getfile/767955/thumbnail/tether.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/894887][img]http://www.supermotors.net/getfile/894887/thumbnail/swingawaysexploded.jpg[/img][/url]

The other piece of red angle iron below & to the L is the reinforcement for the '83-96 t/g strike bolt mounted through the '78-82 hole in this '82 body tub.
[url=http://www.supermotors.net/registry/media/737405][img]http://www.supermotors.net/getfile/737405/thumbnail/strikebolt832.jpg[/img][/url]
swingawaybrace1.jpg | Hits: 4422 | Posted on: 7/24/03 | View original size (412.5 KB)

It's just a 1 1/2" long piece of 3/4" angle iron welded along the inboard edge pressed against the outer skin to keep it from buckling inward if the tire carrier swings forward too hard. Several years later, I added a tether:

.

The other piece of red angle iron below & to the L is the reinforcement for the '83-96 t/g strike bolt mounted through the '78-82 hole in this '82 body tub.
