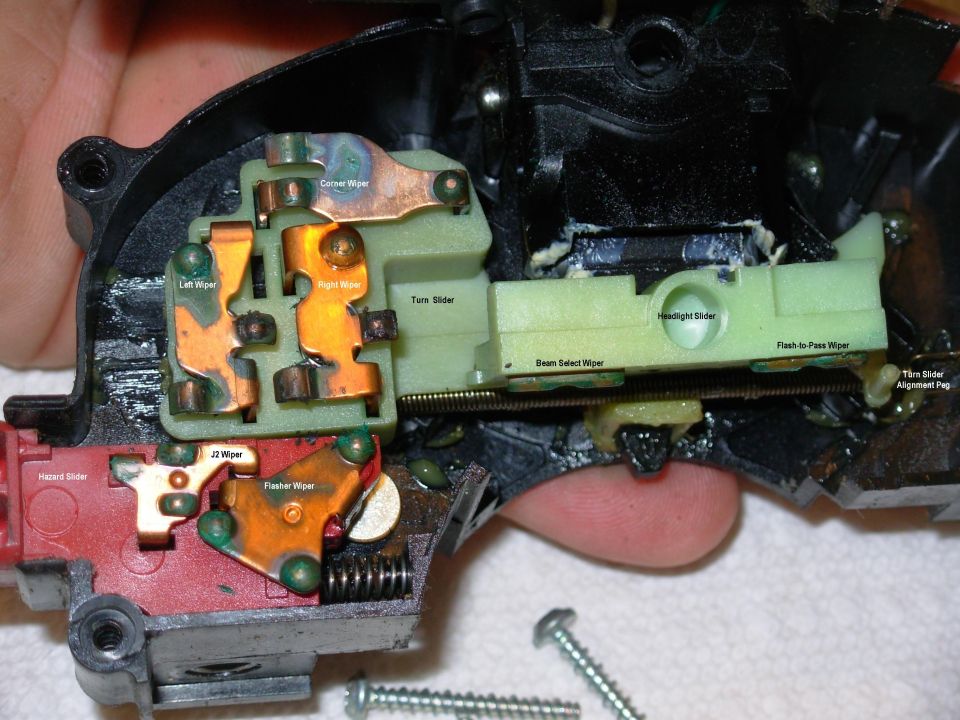

These are the functions of the wipers & sliders. If you can't read the text labels in the image, click it to supersize. The black peg in the white sleeve in the center above my finger is the turn signal cancel lever.

Normal (hazard & turns OFF, low beam):
- The Beam Select wiper on the headlight slider joins the Headlamp & Lo Beam contacts; the FtP wiper on the headlight slider rests on the Hi Beam contact.
- The J2 hazard wiper joins Jumper 2 to the Brake Switch contact.
- The Flasher wiper on the hazard slider joins the Turn Flasher contact to Jumper 1.
- The Cornering wiper on the turn slider rests on the Headlamps contact & the dead pad between the corner light contacts.
- The L wiper on the turn slider joins Jumper 2 to the LHR contact.
- The R wiper on the turn slider joins Jumper 2 to the RHR contact.
