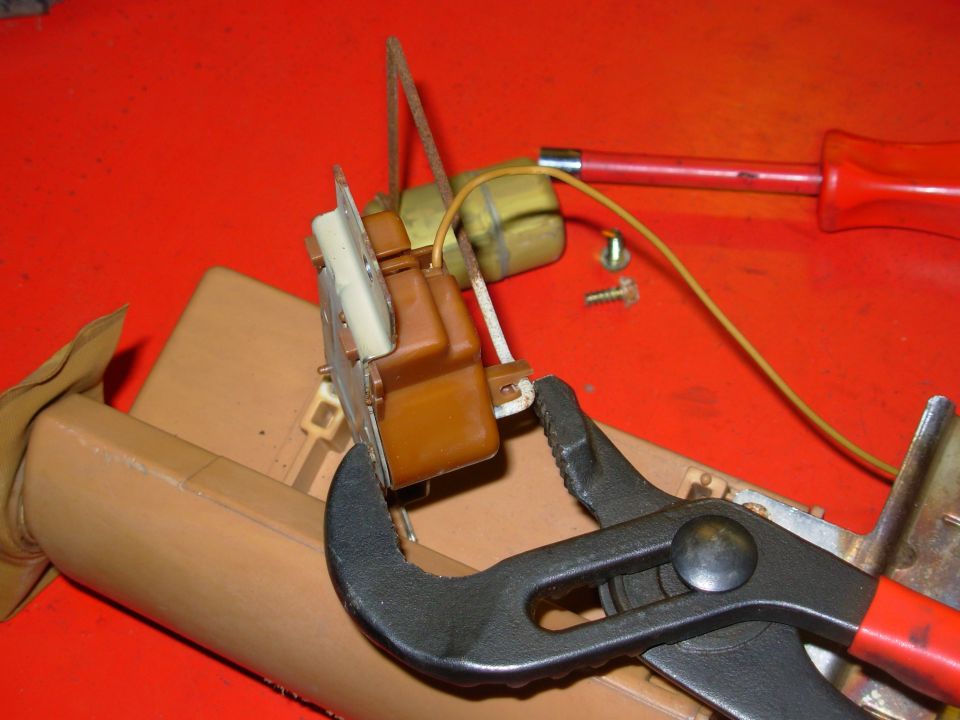

After reassembling the rheostat board, sender housing, wiper arm…

After reassembling the rheostat board, sender housing, wiper arm, & backing plate, press the arm back into the wiper clip. It may be necessary to lubricate the clip with clean motor oil so the rod can slide in more easily. NEVER use any other lubricant in the fuel system, ESPECIALLY NOT silicone grease. Make sure the rod is aligned with the hole in the plate before forcing it into the clip.

Owner caption June 2011 · Photo 3622 of 6546
