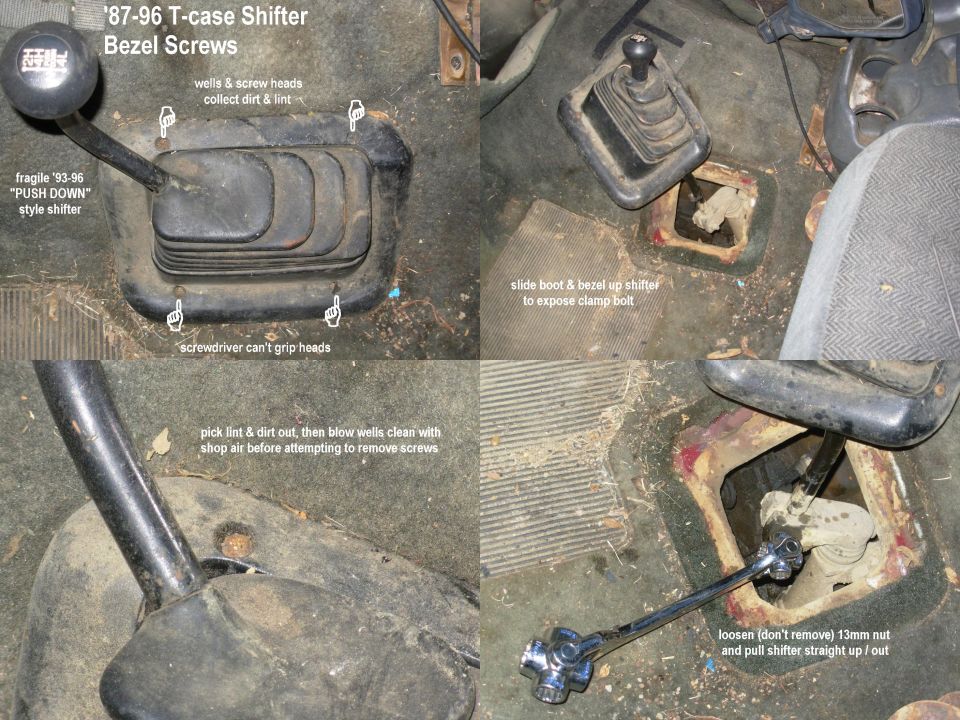

Four-panel guide showing transfer case shifter and bezel screw r…

'87-96 Transfer Case Shifter Bezel Screws
IF THE IMAGE IS TOO SMALL, click it.

Because of the deep wells in the bezel, the common #2 Phillips screw heads become buried, packed, or rusted, making them very difficult to unscrew for shifter maintenance. It may be necessary to use shop or canned air to blast out the loose dirt, then a pick to break up more & excavate the screw head channels, and repeat until a screwdriver fits well enough to back them out.
