What part number is the intake manifold gasket for the Ford 4.9L?

The diagram lists gasket 87006-S96 (T-1-AE) for 1990/94, OR N807543-S for 1995 (with 2 O-rings). A larger manifold gasket 9439 and gasket 9H486 are also shown.

What does the ■ symbol mean on this 4.9L intake diagram?

Per the footnote legend, parts marked ■ are 'SERVICED ONLY IN ASSY 9E926' (the throttle body assembly).

What is the base part number for the 4.9L fuel rail and injectors?

The fuel supply manifold (fuel rail) is 9D280 and the fuel injector is 9F593, with injector O-ring/seal 9229 shown nearby.

Which parts on this diagram apply only to 1987/89 engines?

Parts marked with a dagger (†), including 45332-S, 9F806, 9F818, and 9F811, are noted as 1987/89 per the legend.

What is the injector wiring harness part number for the 4.9L?

The injector wiring harness is shown as 9D930 in the diagram.

Home/ Registry/ Ford/ F-150/ 1987-1991/ “DANBED2002”/ Photo supermotors.net/registry/media/905231

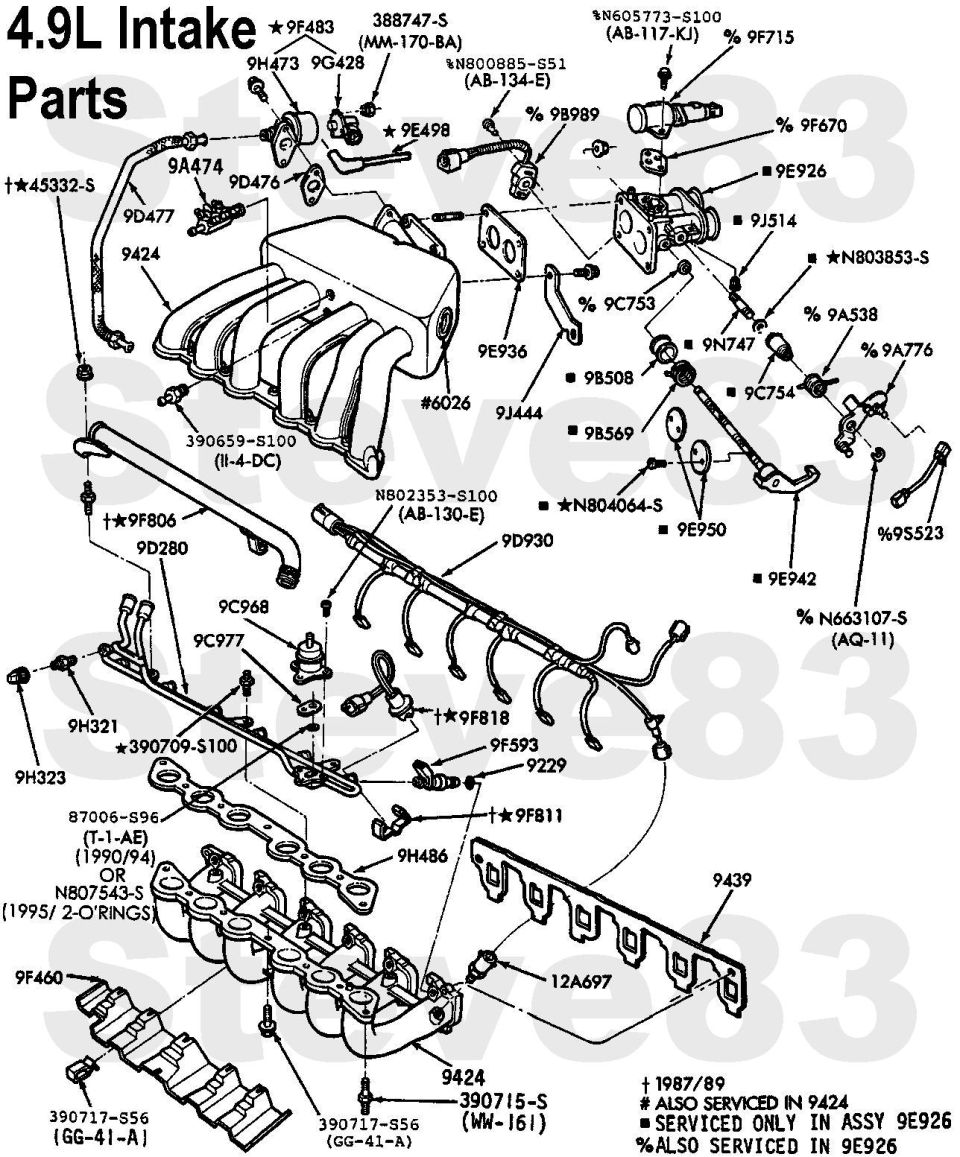

Ford 4.9L I6 EFI Intake Manifold Exploded Parts Diagram (1987-1995 F-150)

4.9L intake parts exploded diagram with manifold, injectors, and part numbers

‹ ›

Exploded parts diagram of Ford 4.9L intake components including manifold, fuel rail, and injectors with part numbers.

AI caption January 2012 · Photo 118 of 120

This document is an exploded parts diagram titled "4.9L Intake Parts," covering the intake system of the Ford 4.9L (300 cu in) inline-six EFI engine. It illustrates the upper intake manifold (9424), lower intake manifold (also 9424), intake manifold gaskets (9439, 9H486), fuel supply manifold/fuel rail (9D280), fuel injectors (9F593), fuel pressure regulator (9C968), throttle body assembly (9E926 and its serviced-only components such as 9E926, 9J514, 9B508, 9B569, 9E950, 9E942), throttle position and related sensors (9B989, N605773-S100), injector wiring harness (9D930), and numerous fasteners, gaskets, clips, and hardware with Ford service part numbers (e.g., 388747-S, 45332-S, 390659-S100, N802353-S100, 390709-S100, 390715-S, 390717-S56, 87006-S96, N807543-S). A footnote legend explains symbols: † applies to 1987/89, # is also serviced in 9424, ■ is serviced only in assembly 9E926, and % is also serviced in 9E926. The gasket callout notes 87006-S96 for 1990/94 or N807543-S for 1995 (2 O-rings), indicating the diagram spans roughly 1987–1995 applications. Readers can use this to identify Ford base part numbers for ordering or identifying 4.9L intake and fuel-injection components.
