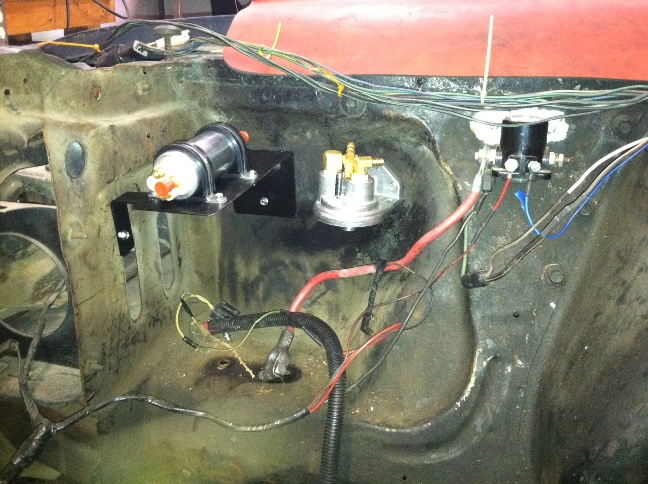

Engine bay wiring in progress with electric fuel pump, filter, a…

Starter solenoid, fuel filter/reservoir, and fuel pump being mocked up. The only thing that ended up being moved was the fuel pump. It now sits about 6 inches below where it is in the pic (where the batt used to go).

The wiring above the starter solenoid is the EEC grounds. That ended up geing bolted to the radiator core support.

Owner caption June 2012 · Photo 11 of 40
