1990 Ford Bronco Instrument Cluster Circuit Operation & Sender Specs (60-7)

Ford instrument cluster how the circuit works, page 60-7, gauge and sender operation
Ford instrument cluster how the circuit works, page 60-7, gauge and sender operationOriginal file
Ford instrument cluster how the circuit works, page 60-7, gauge and sender operation

Reference · 1987-1991 BroncoAll 53 manual pages

Ford Racing mass air conversion kits chart, M-9000-A51, B50, T50 and T51 Ford DSO and wheelbase code chart for Bronco, E-150-250-350 and F-150-250-350 and F-Super Duty 1990 Ford Bronco/F-Series Oil Pressure Gauge Specs & Sender Location 33-32-4 1990 Ford Bronco Instrument Cluster Circuit Operation & Sender Specs (60-7) 1990 Bronco engine, transmission and axle availability chart with ratios 3.08 to 4.10 and codes X18 to XH5 Ford 5.8L EFI Deposit Resistant Injector (DRI) Diagram & Description - E4OD Ford Duraspark II Ignition System Diagram - Component Layout & Wiring (23-01-2) 1990 Ford Bronco Horn & Cigar Lighter Circuit (EVTM 44-2) - Locations & Operation Ford V8 camshaft application chart for 351W and 221-302 CI engines with duration, lift and lobe separation 1988 Ford Bronco Build Cost Sheet - "Mr. Hyde the Deuce" Parts & Expense List Ford automatic transmission identification chart of oil pan shapes for C3, C4, C6, MX, FX, FMX and Borg Warner 53manual pages1987-1991 Ford Bronco More reference 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & DistributorWiring diagram Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Shop manual page 60-7 explaining how the magnetic fuel, coolant temp, oil pressure gauges, tachometer and voltmeter operate; fuel sender 145 ohms full / 22.5 ohms empty.

Part of 1987-1991 Ford Bronco Manual Pages

AI caption · Photo 1404 of 1787

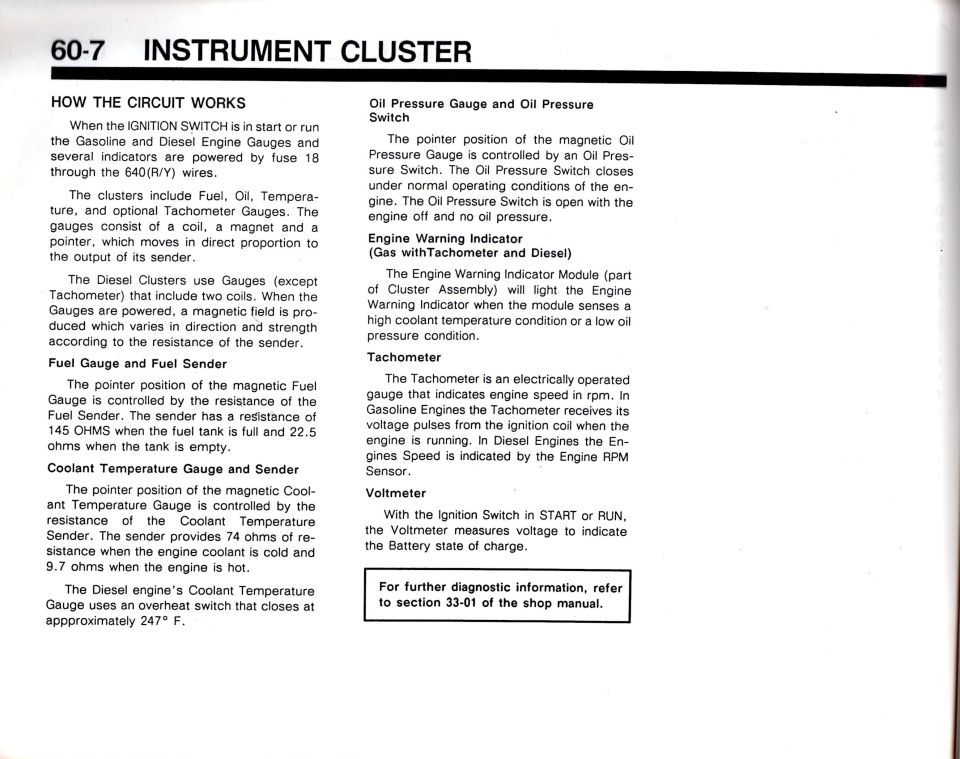

This is page 60-7 of a Ford electrical/vacuum troubleshooting manual (EVTM) covering the Instrument Cluster circuit, uploaded as applying to a 1990 Ford Bronco. The page explains "How the Circuit Works": with the ignition switch in start or run, the gasoline and diesel engine gauges and indicators are powered by fuse 18 through the 640 (R/Y) wires. It describes the magnetic gauge design (coil, magnet, pointer) and gives key sender resistance specifications useful for diagnosis: the fuel sender reads 145 ohms with a full tank and 22.5 ohms empty; the coolant temperature sender reads 74 ohms cold and 9.7 ohms hot; the diesel coolant overheat switch closes at approximately 247°F. It explains the Oil Pressure Switch operation (closed under normal engine operation, open with engine off/no oil pressure), the Engine Warning Indicator module (lights on high coolant temperature or low oil pressure), the Tachometer (driven by ignition coil pulses on gasoline engines, by the Engine RPM Sensor on diesels), and the Voltmeter (indicates battery state of charge with the ignition in START or RUN). A boxed note directs readers to section 33-01 of the shop manual for further diagnostic information. This page is useful for testing fuel/temperature senders and understanding cluster gauge operation.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse powers the instrument cluster gauges on the 1990 Bronco?
With the ignition switch in start or run, the gasoline and diesel engine gauges and several indicators are powered by fuse 18 through the 640 (R/Y) wires.
What resistance should the fuel sender read when the tank is full or empty?
The fuel sender has a resistance of 145 ohms when the fuel tank is full and 22.5 ohms when the tank is empty.
What are the coolant temperature sender resistance values?
The coolant temperature sender provides 74 ohms of resistance when the engine coolant is cold and 9.7 ohms when the engine is hot. The diesel engine's gauge uses an overheat switch that closes at approximately 247°F.
How does the oil pressure switch operate?
The Oil Pressure Switch closes under normal operating conditions of the engine and is open with the engine off and no oil pressure. It controls the pointer position of the magnetic Oil Pressure Gauge.
What triggers the Engine Warning Indicator?
The Engine Warning Indicator Module, part of the cluster assembly, lights the indicator when it senses a high coolant temperature condition or a low oil pressure condition (on gas with tachometer and diesel models).
