1990 Ford Bronco Instrument Cluster Troubleshooting 60-9 - Voltmeter & Warning

Ford instrument cluster troubleshooting hints page 60-9, voltmeter and engine warning indicator
Ford instrument cluster troubleshooting hints page 60-9, voltmeter and engine warning indicatorOriginal file
Ford instrument cluster troubleshooting hints page 60-9, voltmeter and engine warning indicator

Reference · 1987-1991 BroncoAll 95 service procedures

Russell Speed Bleeder three-step brake bleeding instructions with illustrated steps MSD Noise Filter Capacitor PN 8830 Install Diagram - MSD 6AL Ignition Wiring TFI-IV stator resistance test chart with ohmmeter and TFI module terminal illustration 1990 Ford Bronco Instrument Cluster Troubleshooting 60-9 - Voltmeter & Warning 1990 Ford Bronco Instrument Cluster Troubleshooting Hints (60-8) - Gauges & Tach Ford Racing Idle Setting Procedure Instruction Sheet IS-1850-0156 - TPS & IAC Throttle body service procedure decal warning not to clean inside or turn set screw CCW 1995 Ford Bronco TR Sensor Testing - E4OD & 4R70W Pinout, Resistance Chart 95service procedures1987-1991 Ford Bronco More reference 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & DistributorWiring diagram Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

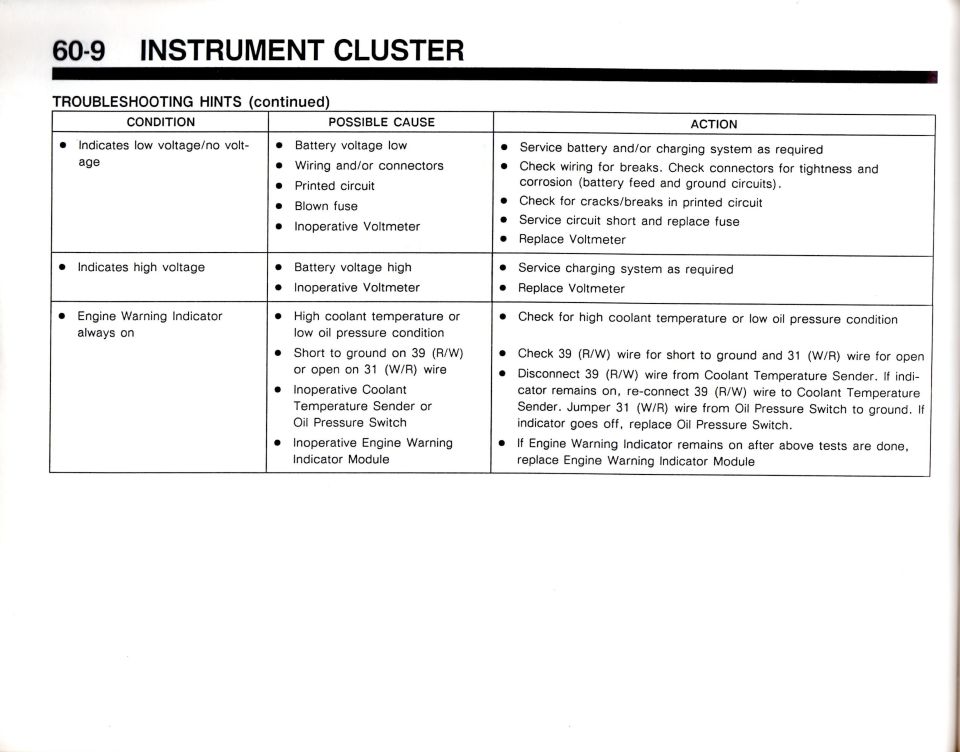

Shop manual troubleshooting chart (60-9) covering voltmeter low/high voltage and always-on engine warning indicator; check shorts on 39 R/W or open 31 W/R wire.

Part of 1987-1991 Ford Bronco Service Procedures

AI caption · Photo 1406 of 1787

This document is page 60-9 of a Ford service manual section covering the Instrument Cluster, presenting a continuation of a troubleshooting hints table. The table is organized into three columns: Condition, Possible Cause, and Action. Three conditions are covered: (1) voltmeter indicates low voltage/no voltage, with causes including low battery voltage, wiring/connector faults, a damaged printed circuit, a blown fuse, or an inoperative voltmeter, and matching corrective actions such as servicing the battery/charging system, checking wiring and connectors, inspecting the printed circuit, servicing shorts and replacing fuses, or replacing the voltmeter; (2) voltmeter indicates high voltage, caused by high battery voltage or an inoperative voltmeter, corrected by servicing the charging system or replacing the voltmeter; and (3) Engine Warning Indicator always on, caused by actual high coolant temperature or low oil pressure, a short to ground on the 39 (R/W) wire or an open on the 31 (W/R) wire, an inoperative Coolant Temperature Sender or Oil Pressure Switch, or an inoperative Engine Warning Indicator Module. Detailed diagnostic steps are given, including disconnecting and jumpering the 39 (R/W) and 31 (W/R) circuits to isolate the faulty component before replacing the module.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Why does my voltmeter read low or no voltage?
Per the table, possible causes are low battery voltage, wiring and/or connector faults, a damaged printed circuit, a blown fuse, or an inoperative voltmeter. Actions include servicing the battery/charging system, checking wiring for breaks and connectors for tightness/corrosion, checking the printed circuit for cracks, servicing the circuit short and replacing the fuse, or replacing the voltmeter.
What causes the voltmeter to indicate high voltage?
Either high battery voltage (service the charging system as required) or an inoperative voltmeter (replace the voltmeter).
Why is the Engine Warning Indicator always on?
Possible causes: an actual high coolant temperature or low oil pressure condition, a short to ground on the 39 (R/W) wire or an open on the 31 (W/R) wire, an inoperative Coolant Temperature Sender or Oil Pressure Switch, or an inoperative Engine Warning Indicator Module.
How do I test whether the Oil Pressure Switch is causing the warning light to stay on?
Re-connect the 39 (R/W) wire to the Coolant Temperature Sender, then jumper the 31 (W/R) wire from the Oil Pressure Switch to ground. If the indicator goes off, replace the Oil Pressure Switch.
What wire colors are used for the Engine Warning Indicator circuits?
Circuit 39 is R/W (red/white) to the Coolant Temperature Sender and circuit 31 is W/R (white/red) to the Oil Pressure Switch.
