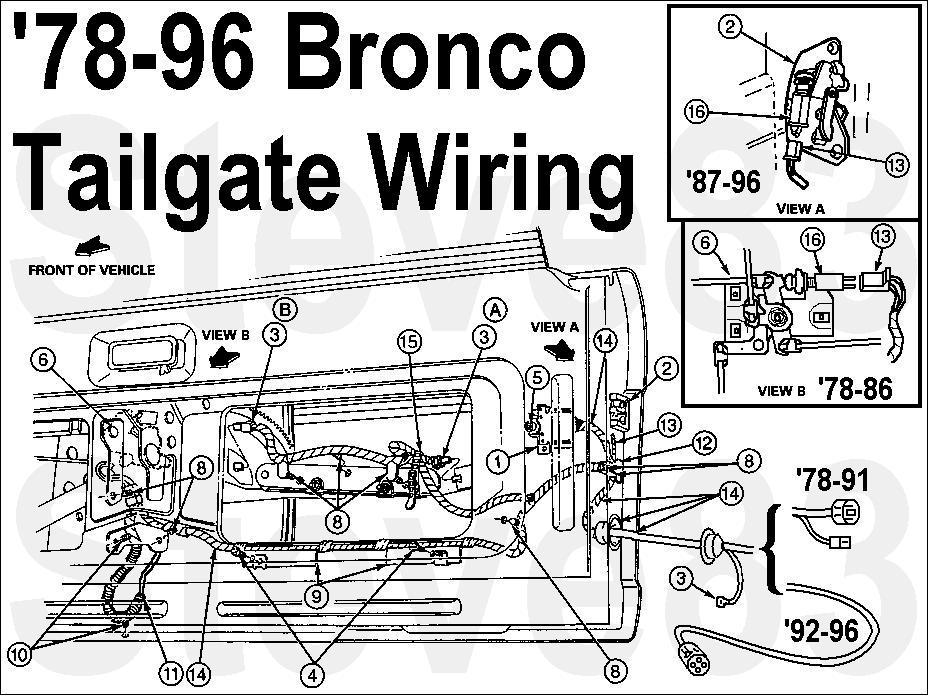

tgwiring.jpg '78-96 Bronco Tailgate Wiring

1 - Switch and Housing Assembly (Includes 14086 Wiring) - 14046
2- Latch Assembly - 43170
3 - Ground ring terminal to Heated Backlight only
4 - Screw - 55927-S2
5- Cylinder Case Assembly - 7143184
6- Remote Control Assembly - 9843170
8 - Locator (Part of 14086 Wiring Assembly)
9 - Guard Channel (Part of 14086 Wiring Assembly)
10 - Locator (Part of 9844000 Window Regulator Assembly)
11 - Wiring (Part of 9844000 Window Regulator Assembly)
12 - Existing Locator Bracket (Part of Door Assembly)
13 - To Window Limit Switch
14 - Wiring (Part of 14046 Switch and Housing Assembly)
15 - Strap - 95873-S
16 - Limit Switch Assembly - 14A011
A. Circuit 57: Black
B. Circuit 186: Brown-Light Blue Stripe

[url=http://www.supermotors.net/registry/media/673144][img]http://www.supermotors.net/getfile/673144/thumbnail/tgharness86.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/517033][img]http://www.supermotors.net/getfile/517033/thumbnail/tgharness95.jpg[/img][/url]
tgwiring.jpg | Hits: 8580 | Posted on: 6/30/12 | View original size (165.43 KB)

'78-96 Bronco Tailgate Wiring

1 - Switch and Housing Assembly (Includes 14086 Wiring) - 14046
2- Latch Assembly - 43170
3 - Ground ring terminal to Heated Backlight only
4 - Screw - 55927-S2
5- Cylinder Case Assembly - 7143184
6- Remote Control Assembly - 9843170
8 - Locator (Part of 14086 Wiring Assembly)
9 - Guard Channel (Part of 14086 Wiring Assembly)
10 - Locator (Part of 9844000 Window Regulator Assembly)
11 - Wiring (Part of 9844000 Window Regulator Assembly)
12 - Existing Locator Bracket (Part of Door Assembly)
13 - To Window Limit Switch
14 - Wiring (Part of 14046 Switch and Housing Assembly)
15 - Strap - 95873-S
16 - Limit Switch Assembly - 14A011
A. Circuit 57: Black
B. Circuit 186: Brown-Light Blue Stripe

.
