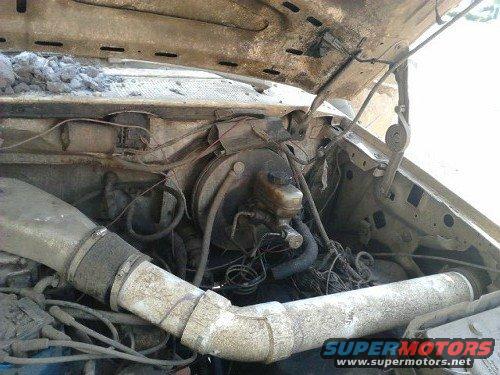

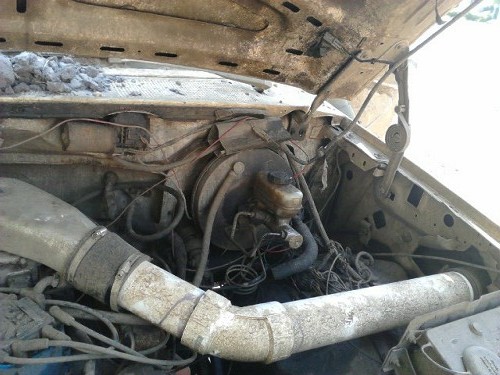

After doing my engine swap From a EFi 302 to a Carb 351W, i had to redo the inside cection of my snorkel. As you can see it is very simple and didnt require any change to the outside section. It is all 3" PVC pipe.

It used a section of 3" PVC pipe coming from my connection of the outside connection. Goes into a 3" 45* bend. Then another shorter piece of pipe. it connects to the engine using a 3" Fernco coupling andmounts to the carb using a Spectre carb plenum (i used #9849). the carb plenum is definaly more costly than anything else but i didnt want to cheap out on this.

This was before i made an inline filter. Like my EFI setup, it used a Spectre air cleaner on the top ofthe snorkel

I did not need to use any flexible connection in this. from what i was seeing when assembling it had plenty of flex to allow the engine to move and not affect anything.
