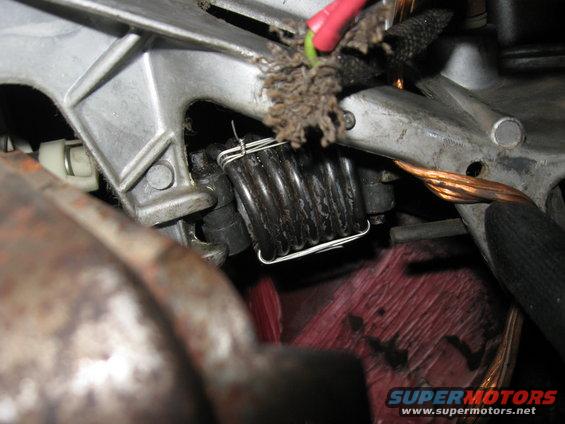

img_4333.jpg Back in place.  One end goes into a slot on the pedal bracket and the other end goes into the fork on the end of the clutch rod.  It's easiest to put it in place with the clutch fully pressed to the floor (have it disconnected from the linkage/master cylinder).
img_4333.jpg | Hits: 256 | Posted on: 10/22/12 | View original size (2.57 MB)

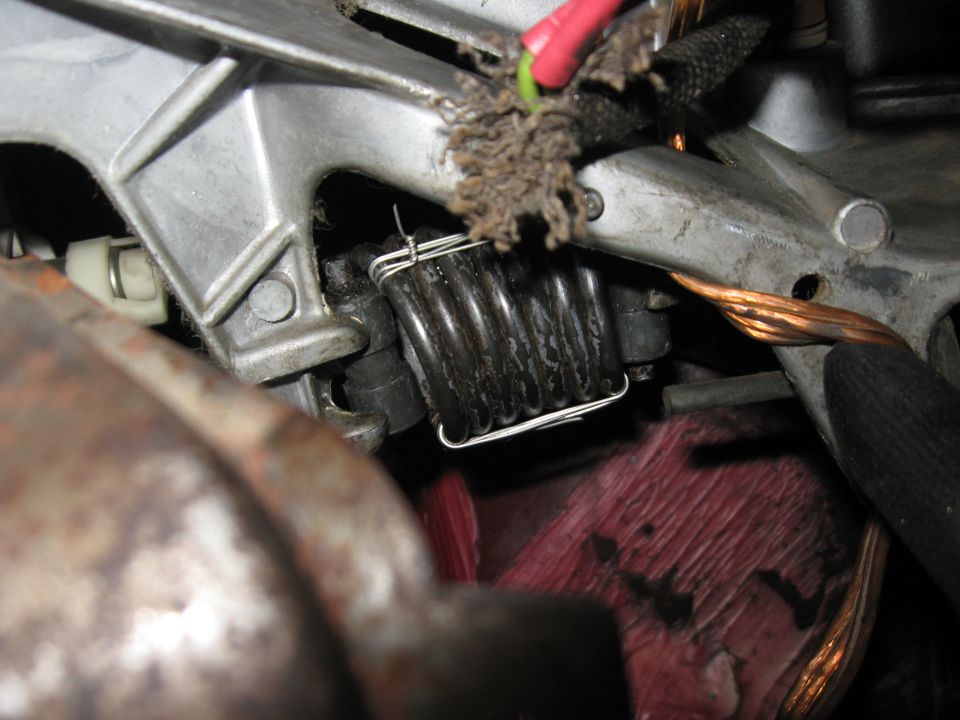

Back in place. One end goes into a slot on the pedal bracket and the other end goes into the fork on the end of the clutch rod. It's easiest to put it in place with the clutch fully pressed to the floor (have it disconnected from the linkage/master cylinder).
