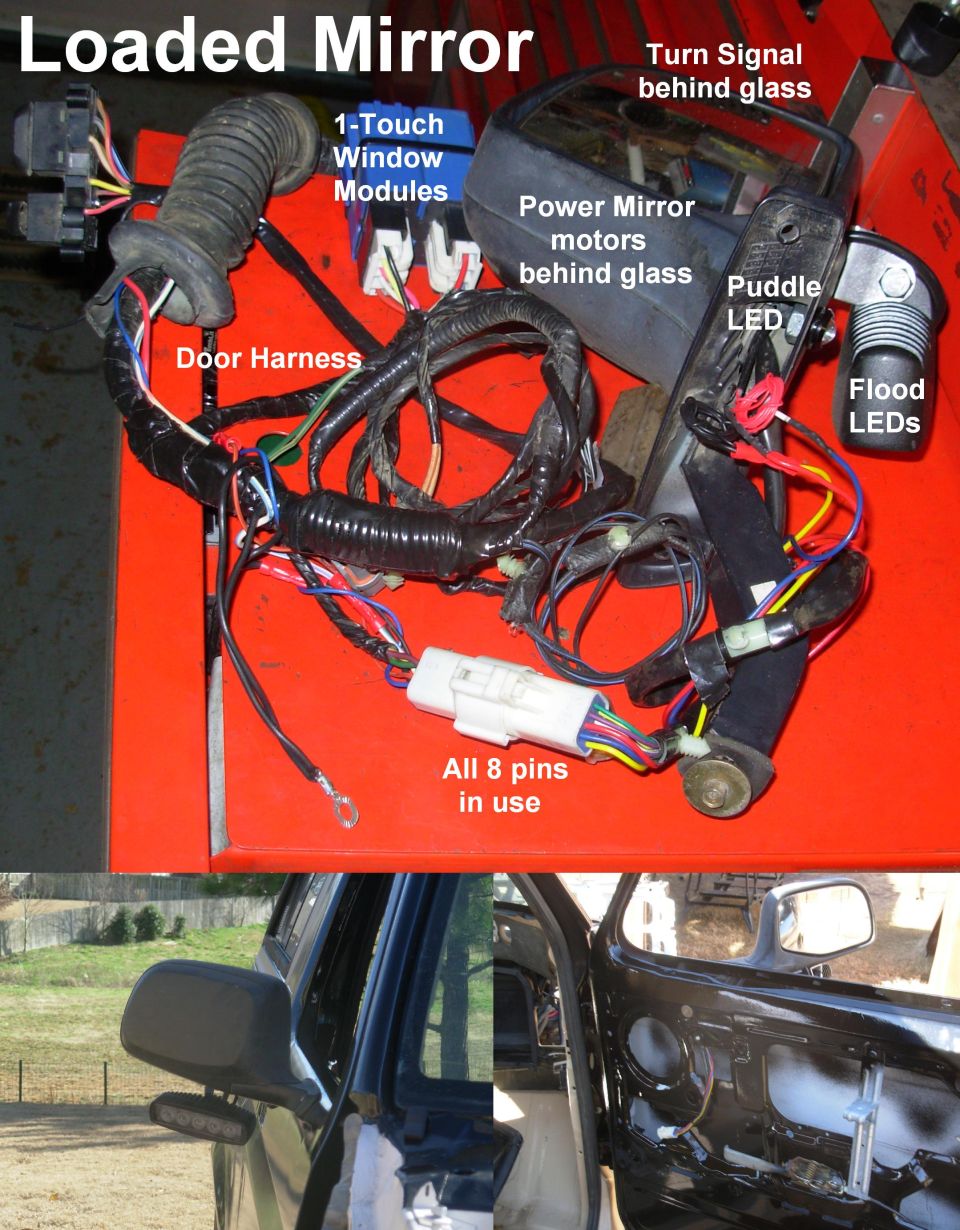

Labeled truck side mirror wiring harness with power mirror, LEDs…

Loaded Mirror
IF THE IMAGE IS TOO SMALL, click it.

This now has almost everything modern mirrors have, plus the off-roading lights (which Ford added to new trucks the year after I did this).

3 wires are still being used for the motors.
2 pins are used for all the grounds (to make sure there's enough ground capacity)
1 wire for the turn signal LEDs
1 wire for the flood LEDs
1 wire for the puddle LED

I have not yet attempted to add memory to these mirrors, but I assume it can be done.

I've added heat to a few sets, including a local friend's Bronco.
