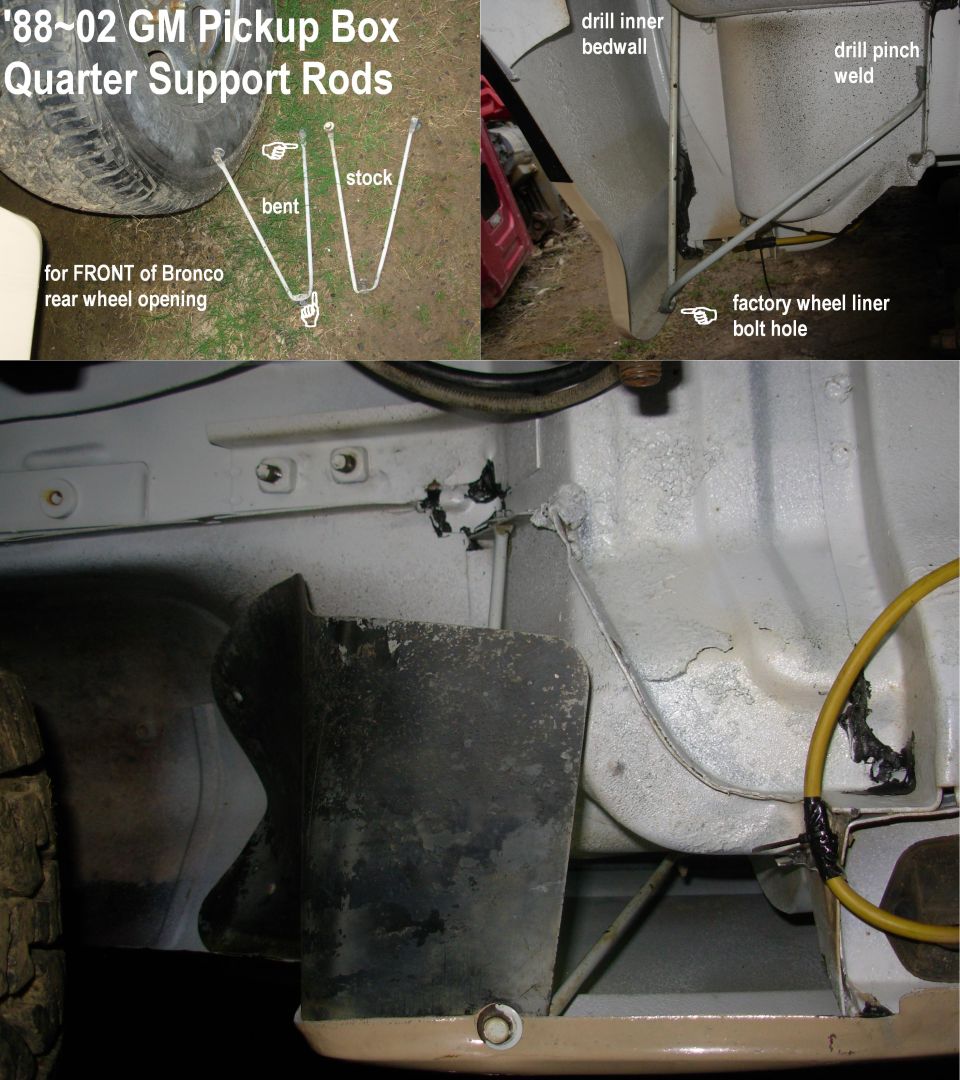

GM pickup box support rods installed in white Bronco rear wheel…

Quarter Panel Support Rods

Rather than continue using the nut/bolt arrangement on the factory wheel liners (E9TZ-9928370-B), I found these bed quarter support rods on old GM trucks, and bent them to fit. It took some guesswork (& filing) to get the front bolt location, but they seem to help.

I made similar ones for the rear part of the wheel openings.



The heavy yellow wire is from the aux.batt. binding post to the power inverter.
