What wire color is pin 20 on the EFI connector?

Pin 20 is a Black/Green wire and functions as the Distributor Ground.

What is the white wire (pin 21) for in the 8v EFI swap harness?

According to the table, pin 21 (White) goes to the Distributor.

Which wiring diagram pages cover the fuel pump and idle speed controls?

Pages 8A-20-4 and 8A-20-5 cover Fuel Pump and Idle speed controls.

Which diagram page shows the engine and vehicle data sensors?

Page 8A-20-8 covers Engine & Vehicle Data Sensors.

Where did this 8v EFI swap document originally come from?

It was printed from http://www.yankeetoys.org/mini4x/efiswap/efiswap.htm and is page 4 of 4.

Home/ Registry/ Suzuki/ Samurai/ 1986-1995/ “the Go-Cart”/ Photo supermotors.net/registry/media/985235

Suzuki Samurai 8v EFI Swap Wiring - Pin Colors & 8A-20 Diagram Index (Pg 4)

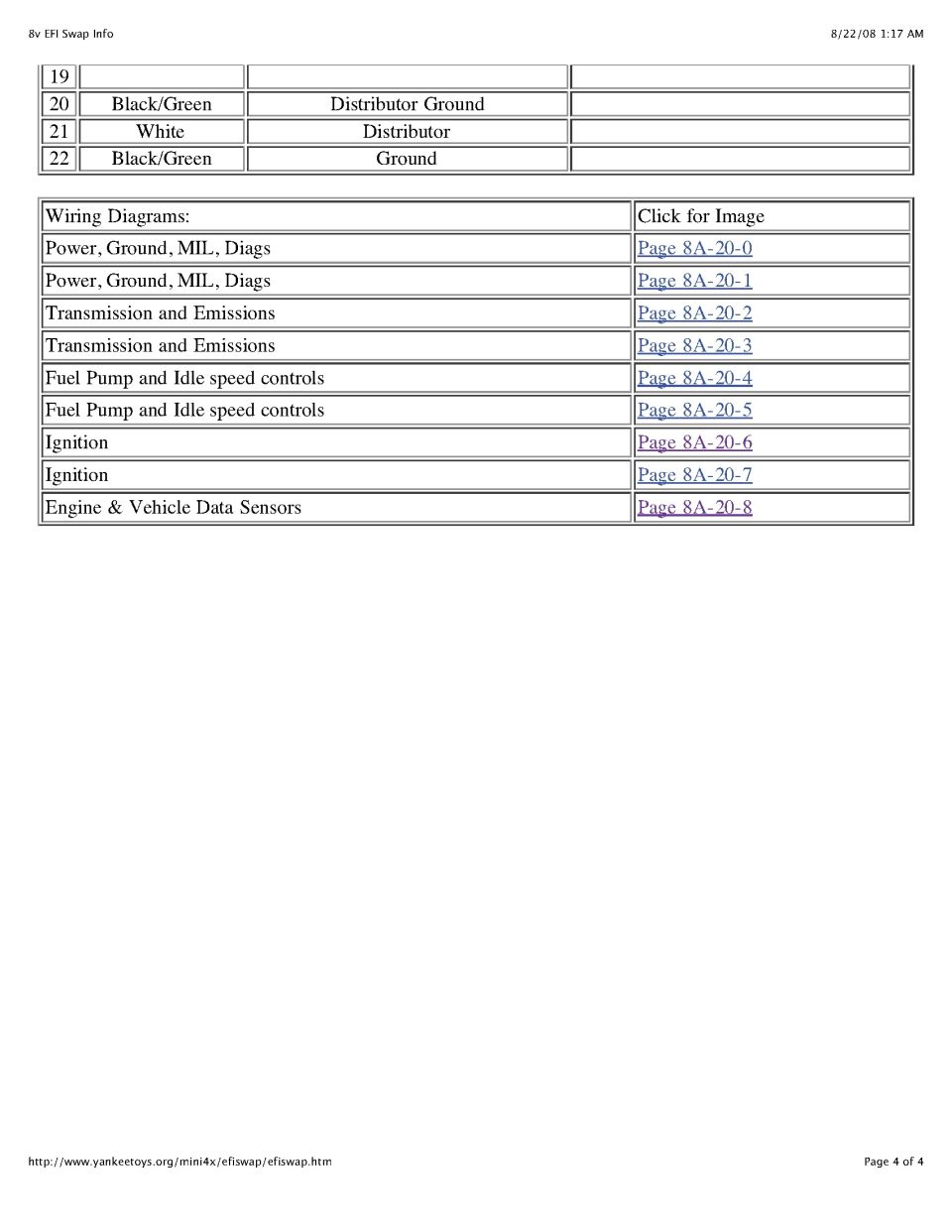

8-valve EFI swap distributor pinout table and wiring-diagram index

‹ ›

Reference · 1986-1995 SamuraiAll 3 manual pages

Suzuki Samurai 8v EFI Swap Wiring - Pin Colors & 8A-20 Diagram Index (Pg 4)

Tap and drill size chart listing metric and SAE threads with decimal and letter drill sizes

"Evil Twin" Samurai twin stick transfer case kit parts laid out with numbered instruction sheet

3manual pages1986-1995 Suzuki Samurai More reference

Connector A1: C204 pinout with wire color, circuit and swap notes for pins 1-18

Wiring diagram

Suzuki Samurai Spring-Over Leaf Spring Diagram - Features & Design Callouts

Brochure

Weathered embossed option code plate with three-letter codes and partial serial numbers

Spec plate

Vacuum routing

Photo of Purple Compact Car Front Wheel & Fender (Misfiled Samurai Doc Scan)

Exploded parts

Receiver-Mount Winch Drop-In Bumper Mounting Idea Diagram - 2 Inch Hitch Tube

Schematic

1986 Suzuki Samurai Fuse Box Diagram - Main Fuse Block & Fuse Panel Layout

Fuse chart

1987 Suzuki Samurai Fabrication Template - Hand-Drawn Full-Size Layout w/ Dims

Blueprint

Trail Tough Samurai Twisted T/T shift shaft installation instructions beside bagged shift shafts and gasket

Service procedure

EFI swap reference page (yankeetoys mini4x) listing distributor connector pins (Black/Green distributor ground, White distributor, Black/Green ground) and an index of EEC wiring diagram pages 8A-200 through 8A-208.

Part of 1986-1995 Suzuki Samurai Manual Pages

AI caption June 2013 · Photo 361 of 366

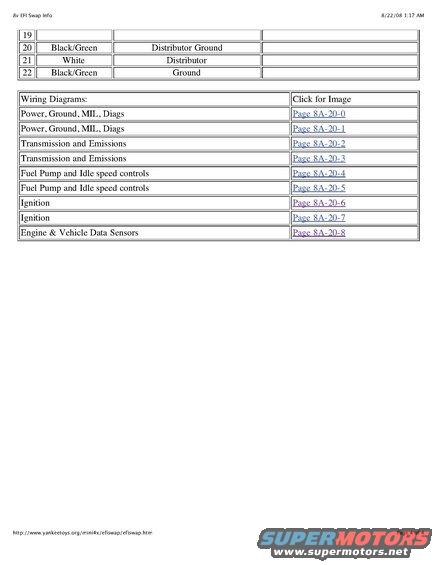

This is page 4 of 4 of an "8v EFI Swap Info" web document (printed 8/22/08 from yankeetoys.org/mini4x/efiswap/efiswap.htm) covering an 8-valve electronic fuel injection swap, most relevantly for a Suzuki Samurai. The top of the page finishes a wire/pin table begun on an earlier page, listing connector pins 19-22: pin 20 is a Black/Green wire for Distributor Ground, pin 21 is White for the Distributor, and pin 22 is Black/Green for Ground (pin 19's entry is blank). Below is an index of linked wiring diagram images from a factory-style manual section, referencing pages 8A-20-0 through 8A-20-8: Power, Ground, MIL, Diags (8A-20-0 and 8A-20-1), Transmission and Emissions (8A-20-2 and 8A-20-3), Fuel Pump and Idle speed controls (8A-20-4 and 8A-20-5), Ignition (8A-20-6 and 8A-20-7), and Engine & Vehicle Data Sensors (8A-20-8). A reader can learn the final ECU/harness pin wire colors and functions for the EFI swap and which wiring diagram pages cover each subsystem. The page contains no year, engine, or vehicle-model text beyond the "8v EFI" title.
